USING GRYPHON™ D432/D432E
3
3 USING GRYPHON™ D432/D432E
3.1 AIMING SYSTEM
The Gryphon™ D432/D432E reader uses an intelligent aiming system. By pulling the
trigger, the aiming system indicates a field of view, which should be positioned over
the code:

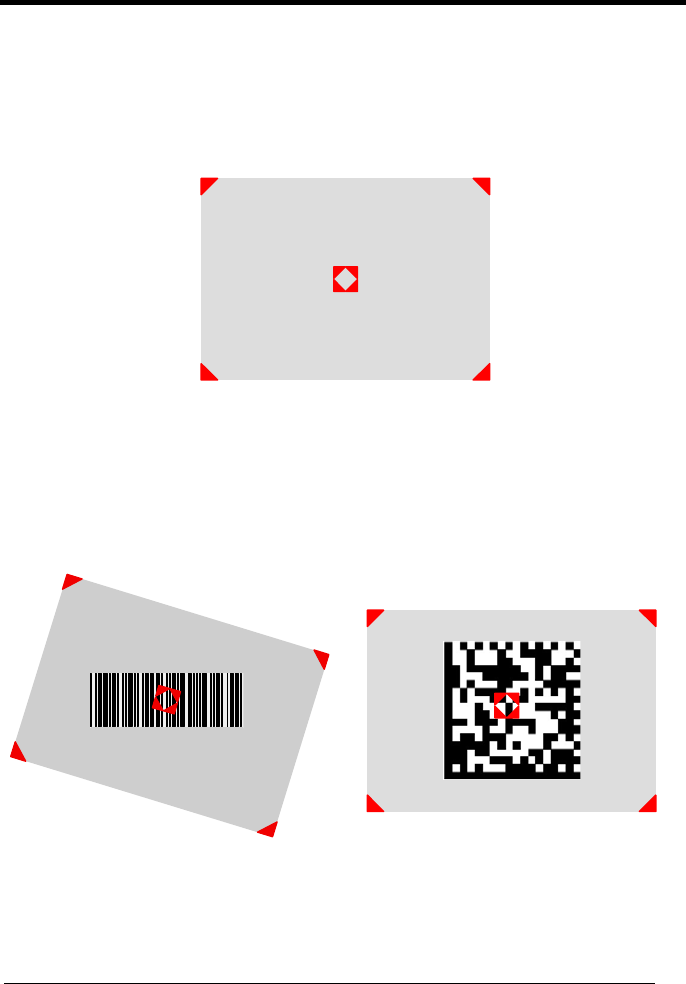

Figure 1 - Aiming System
When you pull the trigger a red beam illuminates the code. If the aiming system is
centered and the entire symbology is within the aiming system, you will get a good
read. The field of view changes size as you move the reader closer or farther away
from the code.
Linear barcode 2D Matrix symbol
Figure 2 - Relative Size and Location of Aiming System Pattern
