Installation Drawings
54

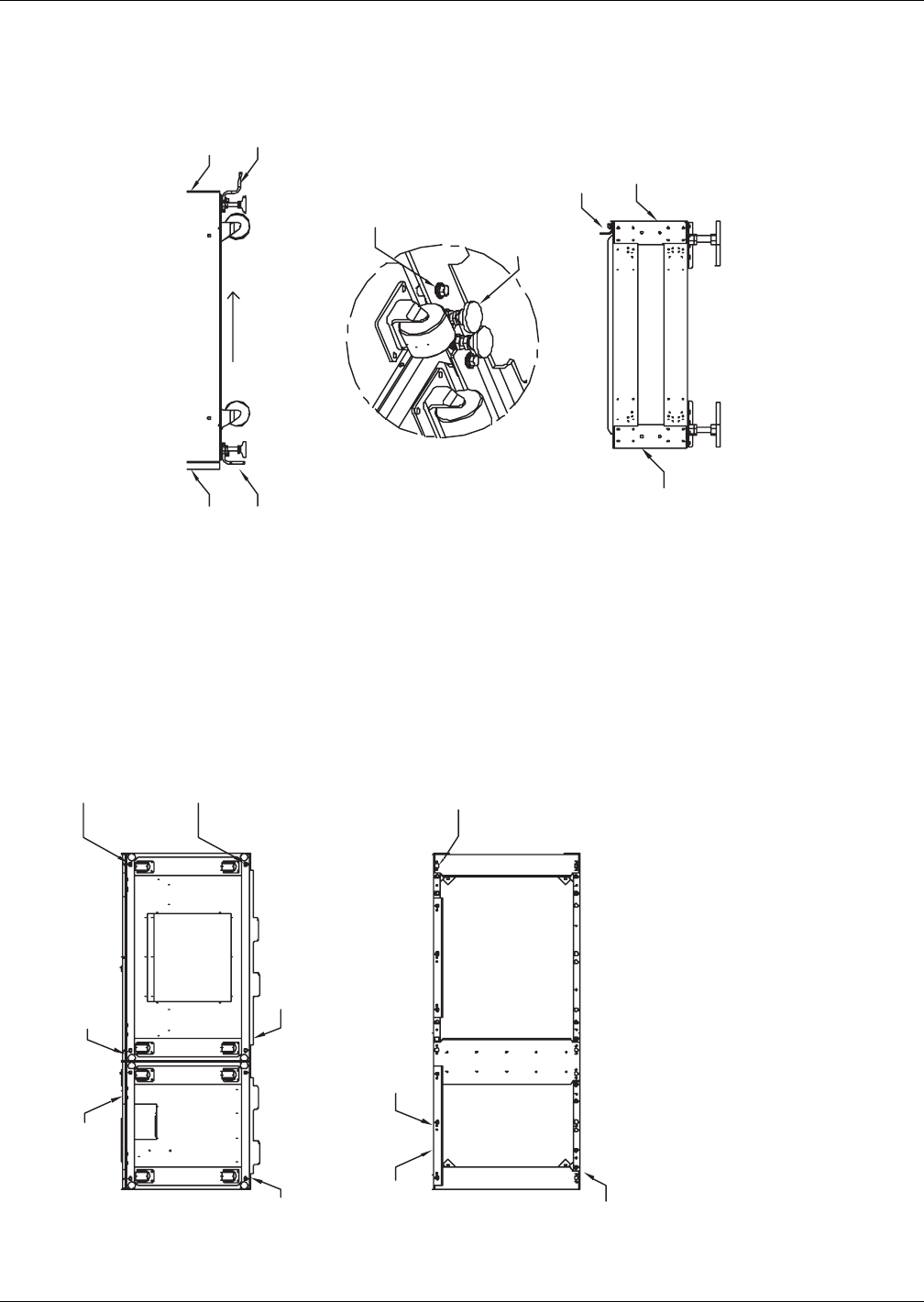

Figure 41 Installation drawing, seismic floor stand 800-1000A
FRONT
FRONT
REAR
REARFRONT
LEVELER FOOT
DETAIL C
(3 PLACES)
CAP SCREW M12-1.75 x40mm
SPLIT LOCK WASHER M12
FLAT WASHER M12
REAR LOWER STS2 BRACKET
REAR
FIG. 3
TOP VIEW OF FLOOR STAND
WITH LOWER REAR MOUNTING BRACKET
FRONT UPPER STS2 BRACKETFRONT
(2 PLACES)
CAP SCREW M12-1.75X40MM
SPLIT LOCK WASHER M12
FLAT WASHER M12 (SEE DETAIL C)
(2 PLACES)
CAP SCREW M12-1.75X40MM SPLIT
LOCK WASHER M12 FLAT WASHER M12
REAR UPPER STS2 BRACKET
REAR SIDE
REAR LOWER
BRACKET
FIG. 4
RIGHT SIDE VIEW OF FLOOR STAND
WITH LOWER REAR MOUNTING BRACKET
NOTE:
SEE DWGS PS217000, PS217002, AND PS217003
FOR DETAILS.
FIG. 1
BOTTOM VIEW OF STS2 WITH UPPER BRACKETS
FIG. 2
RIGHT SIDE VIEW OF STS2 WITH UPPER BRACKETS
FRONT UPPER
STS2 BRACKET
FRONT UPPER
STS2 BRACKET
LEVELER FOOT NUT
PS217001 Rev. 0
