3-15
MVX 44 / 48 / 84 / 88 VGA Matrix Switchers • Operation
PRELIMINARY
3. Press and release the I/O button (figure 3-24).
2
OUTPUTS
1
8
6
5
4
3
7
I/O
AUD
VID
+dB
-dB
4
INPUTS
6
4
5
Press the button
to deselect audio.
The video LED lights
when video is selected.
The audio LED is off
when audio is deselected.
The Output 3 LED lights to indicate that output 3 is selected and it is receiving video. The
source is indicated by the Input LED(s).
The Output 1, Output 4, and Output 8 LEDs also light to indicate that they are receiving video
from the indicated input.
The Input 5 LED lights to indicate that this input's video is tied
to output 3 (and the other lit outputs).

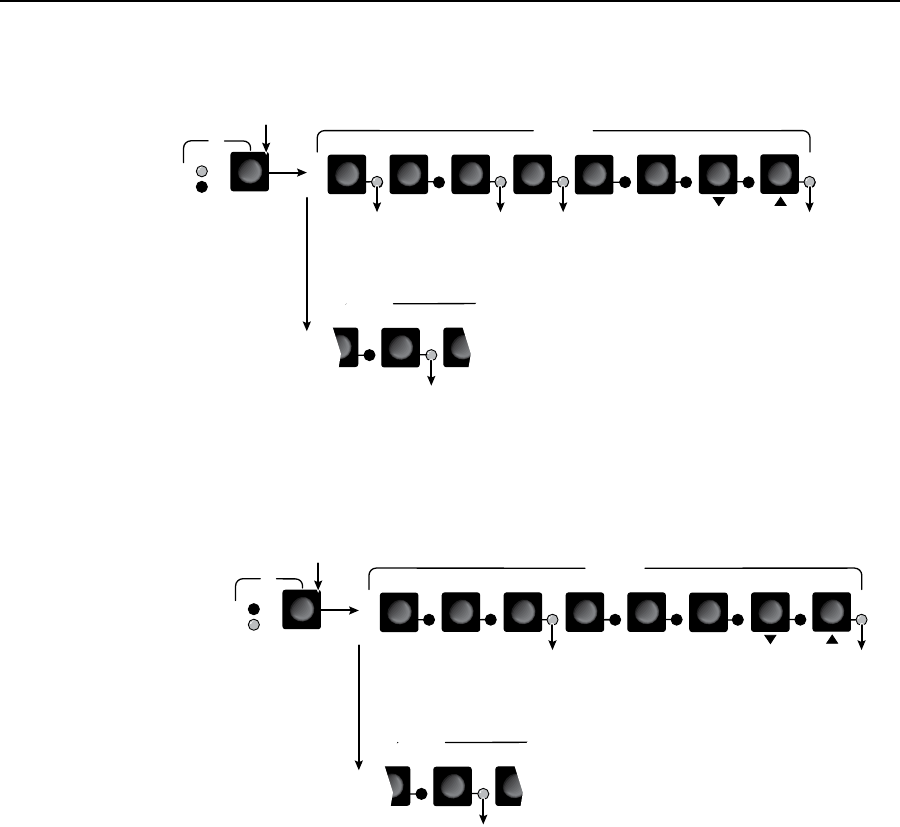

Figure 3-24 — Deselect audio to view video ties only
4. Press and release the I/O button (figure 3-25).
7
6
24
1
INPUTS
OUTPUTS
8
3
6
4
5
5
I/O
AUD
VID
+dB
-dB
The Output 3 LED lights to indicate that output 3 is selected and it is receiving audio.
The source is indicated by the Input LED.
The Output 8 LED also lights to indicate that output 8 is receiving audio from the
indicated input.
The Input 5 LED lights to indicate that this input's audio is tied
to output 3 (and the other lit outputs).
Press the button to deselect
video and select audio.
The video LED is off
when video is deselected.
The audio LED lights
when audio is selected.
Figure 3-25 — Deselect video to view audio ties only
5. Allow the 5-second input and output button timeout to deselect the output.
