VSW 2VGA A • Installation and Operation
2-5
4. Attach the rack shelf to the rack using four
10-32 x 3/4 inch bolts (provided). Insert the bolts through
#10 beveled washers, then through the holes in the rack
ears and rack, as shown in figure 2-2.
Use 2 mounting holes on
opposite corners.
(2) 4-40 x 3/16"
Screws
1U Universal Rack Shelf

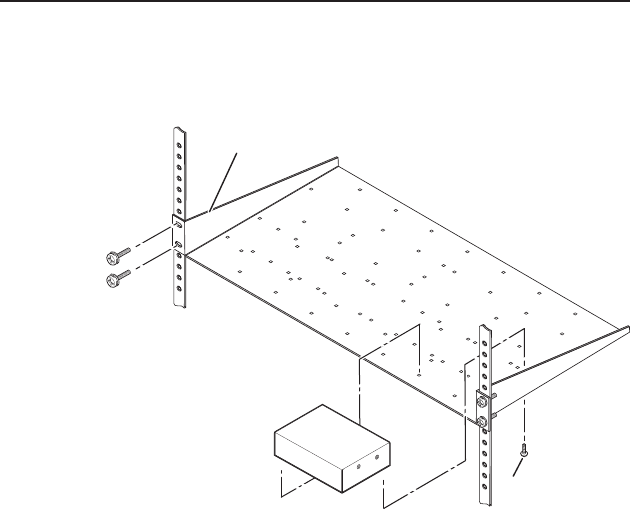

Figure 2-2 — Mounting the VSW 2VGA A on a
standard 1U rack shelf
