Installation Requirements
3-10 C156-E228-02EN
3.2.2 Installation direction

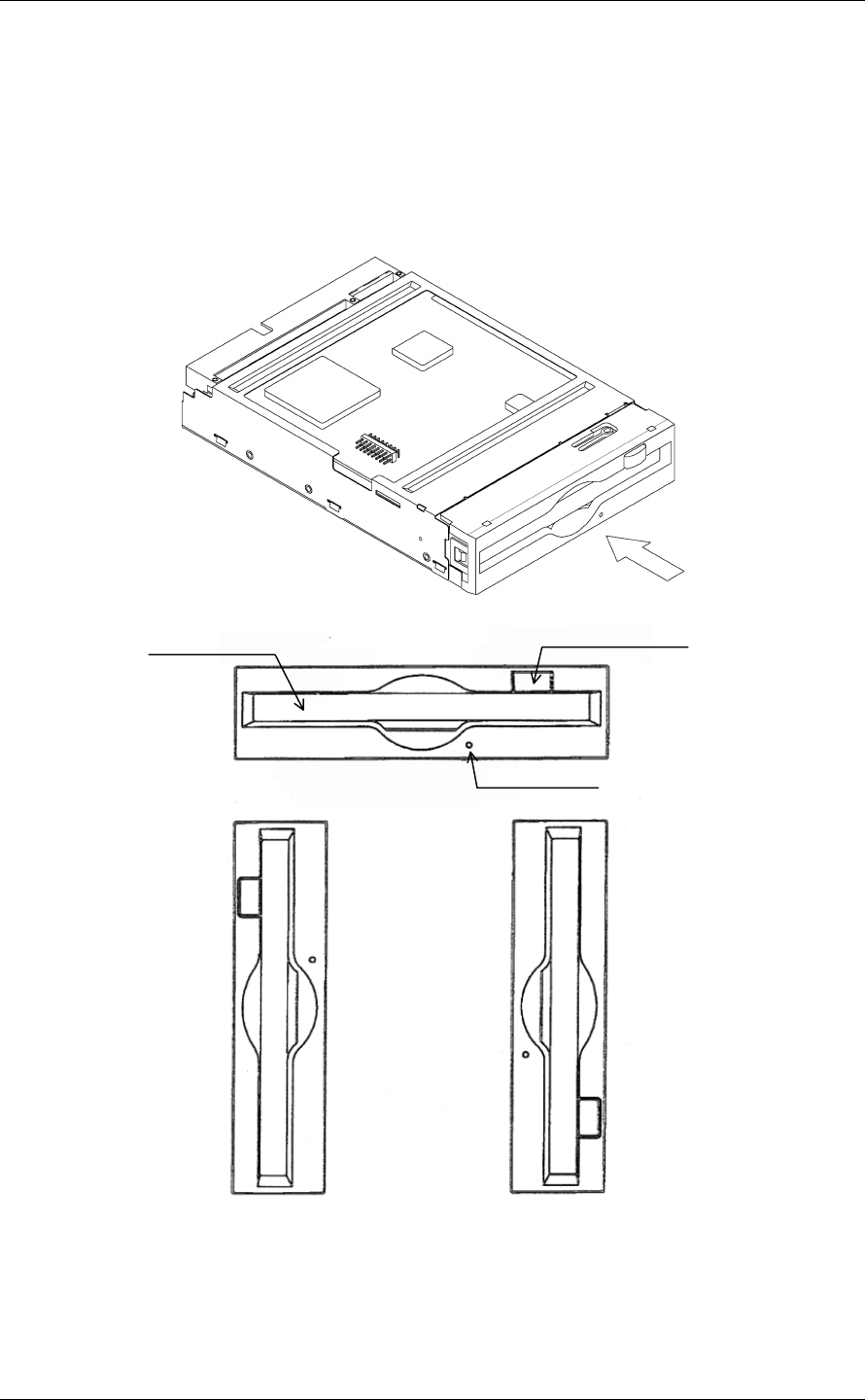

Figure 3.4 shows the permissible installation directions for the optical disk drive.
The mounting angle tolerance must be within -5° to 10° relative to the horizontal
plane.
(-) shows that the cartridge insertion slot faces downward.
Figure 3.4 Installation directions
Horizontal
Vertical
(Two orientations)
Disk insertion slot
Eject button/Busy LED
M
anual eject hole
