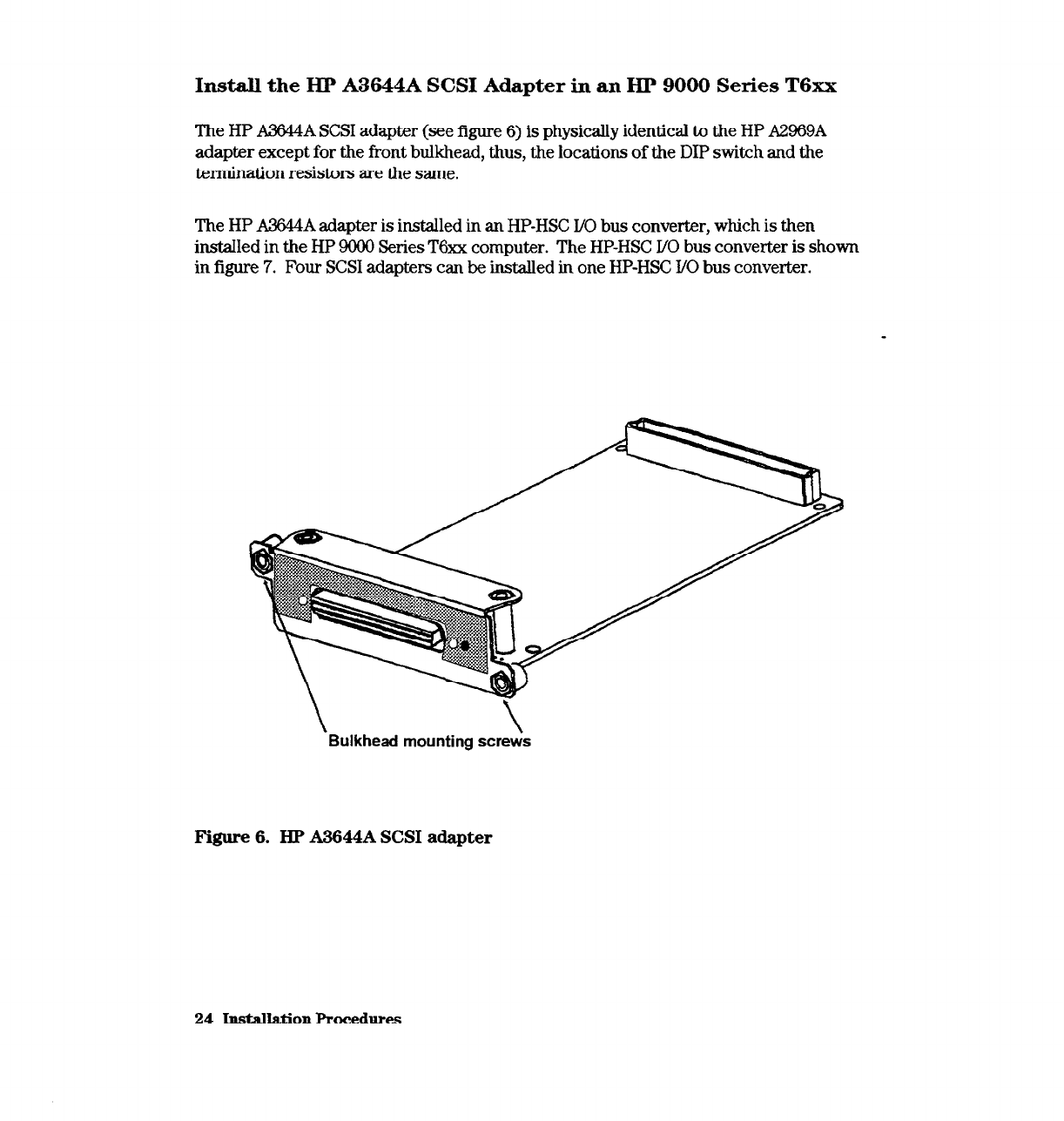

Install the HP A3644A SCSI Adapter in an HP 9000 Series T6xx
The HP A3644A SCSI adapter (see figure 6) is physically identical to the HP A2969A
adapter except for the front bulkhead, thus, the locations of the DIP switch and the
termination resistors are the same.
The HP A3644A adapter is installed in an HP-HSC I/O bus converter, which is then
instaIled in the HP 9000 Series T6xx computer. The HP-HSC YO bus converter is shown
in figure 7.
Four SCSI adapters can be installed in one HP-HSC VO bus converter.
Bulkhead mounting screws
Figure 6. HP A3644A
SCSI
adapter
24 Installation Procedures
