6
PAUSE/
R.A.EDIT
AV2 IN
RF OUT
RF OUT
ON–TEST–OFF
32
40
ANT. IN
AV1 IN/OUT
R
L
AUDIO OUT
DECODER VCR TV
EXT.2 EXT.1

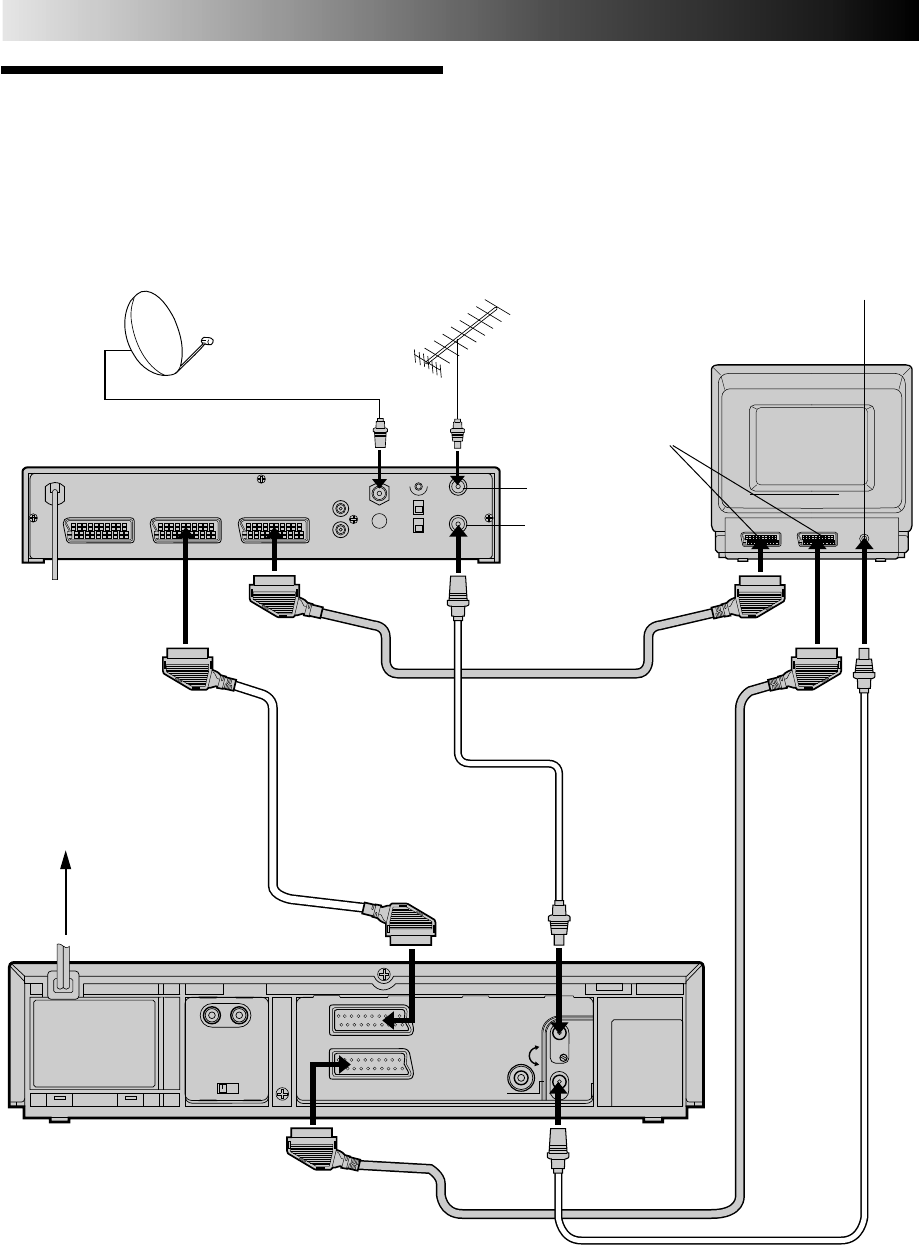

INSTALLING YOUR NEW RECORDER (cont'd)
Connection To
A Satellite
Receiver
The AV2 IN socket on the rear panel of your recorder allows
simple connection to a satellite receiver.
NOTES:
When connecting your recorder to a TV equipped with 21-pin SCART connectors, follow the illustration above using the cables
shown in gray.
For details, check your satellite receiver’s instruction manual.
Outdoor Unit
Satellite Cable
Satellite Receiver
Unit
TV Aerial cable
Aerial
Mains outlet
Back of TV
21-pin SCART
connectors
ANT. IN
RF OUT
Aerial terminal
Back of Recorder
