Chapter 5 Signal Connections
NI 7340 User Manual 5-12 ni.com

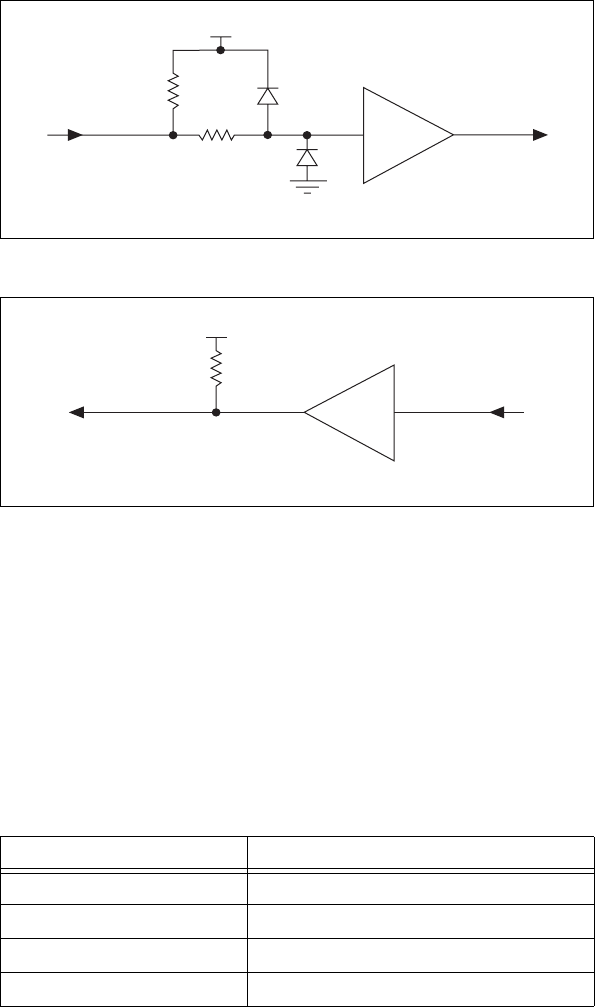

Figure 5-6. Shutdown Input Circuit
Figure 5-7. Breakpoint Output Circuit
Analog Inputs
The 7340 has the following ADC input signals:
• Analog Input <1..4>—The 7340 includes an eight-channel
multiplexed, 12-bit ADC capable of measuring ±10 V, ±5 V, 0–10 V,
and 0–5 V inputs. ADC channels 1 through 4 are brought out
externally on the 68-pin motion I/O connector. ADC channels 5
through 8 are connected internally, as shown in Table 5-2. These
signals can be used for ADC test and system diagnostics.
Table 5-2. Internal ADC Channels
ADC Input Signal
5 Filtered +5 V
6 Floating (NC)
7 Analog Reference (7.5 V)
8 Analog Input Ground
74FCT244
1 kΩ
1/8 W
From the external
connector
shutdown pin
To the shutdown
circuits
DGND
Vcc
3.3 kΩ
To the external
connector
breakpoint pins
From the
breakpoint
circuits
Vcc
3.3 kΩ
74AS760
