109
Triggering Examples
Single-Machine Trigger Examples
To trigger after all status bus lines finish
transitioning
In some applications, you will want to trigger a measurement when a
particular pattern has become stable. For example, you might want to
trigger the analyzer when a microprocessor’s status bus has become
stable during the bus cycle.
1 Go to the timing analyzer’s Trigger menu.
2 Define a term called PATTERN to represent the value to be found
on the status bus lines.
3 Under Timing Sequence Levels, enter the following sequence
specification:
• TRIGGER on "PATTERN" > 40 ns

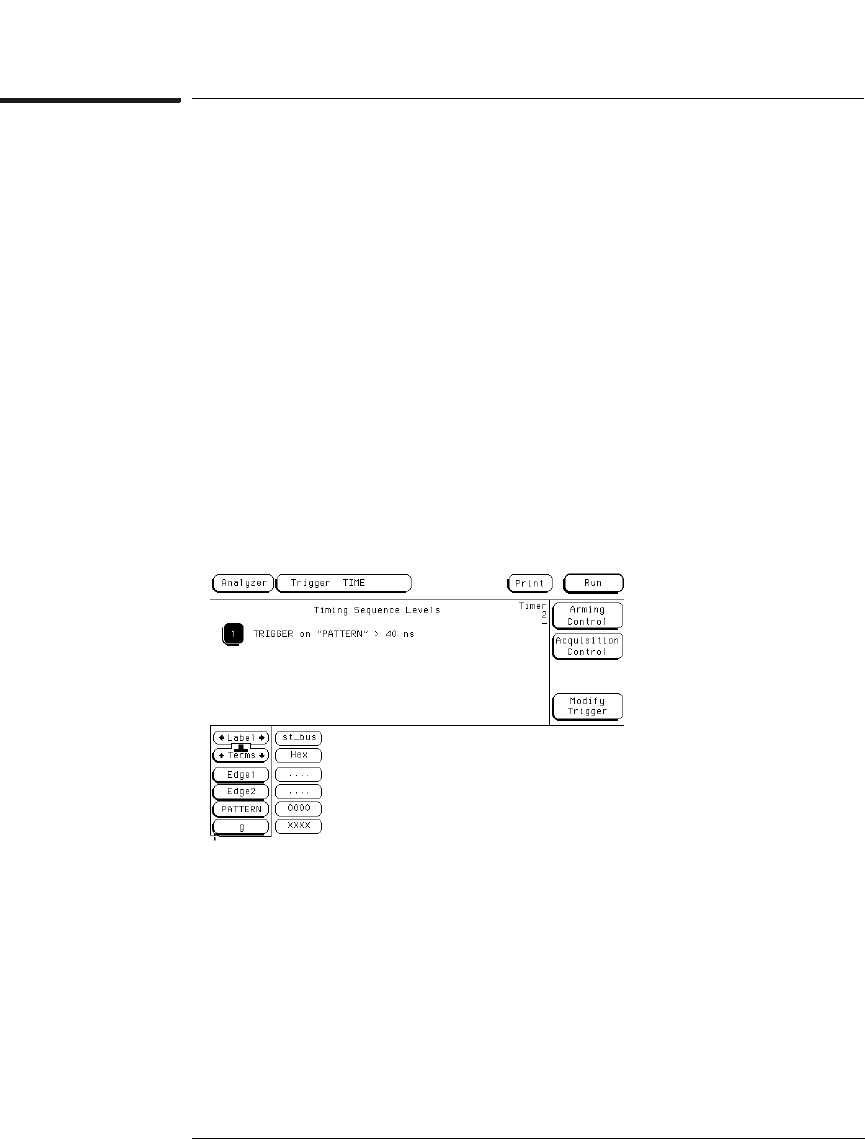

Triggering After Lines have Finished Transitioning
