Logic Analyzer Reference
Display Color Selection
White is the center of the top of the cylinder (Luminosity = 100%,
Saturation = 0%). The center line of the cylinder (Saturation = 0%) is a
line which connects the center of the black plane (Luminosity = 0%,
Saturation = 0%) with white (Luminosity = 100%, Saturation = 0%)
through a series of gray steps (Luminosity from 0% to 100%,
Saturation = 0%). Whenever saturation is 0%, the value of hue does not
matter. Zero saturation is white, and 100% saturation gives you the
pure color. The outer edge of the cylinder (Saturation = 100%)
represents the fully saturated color.

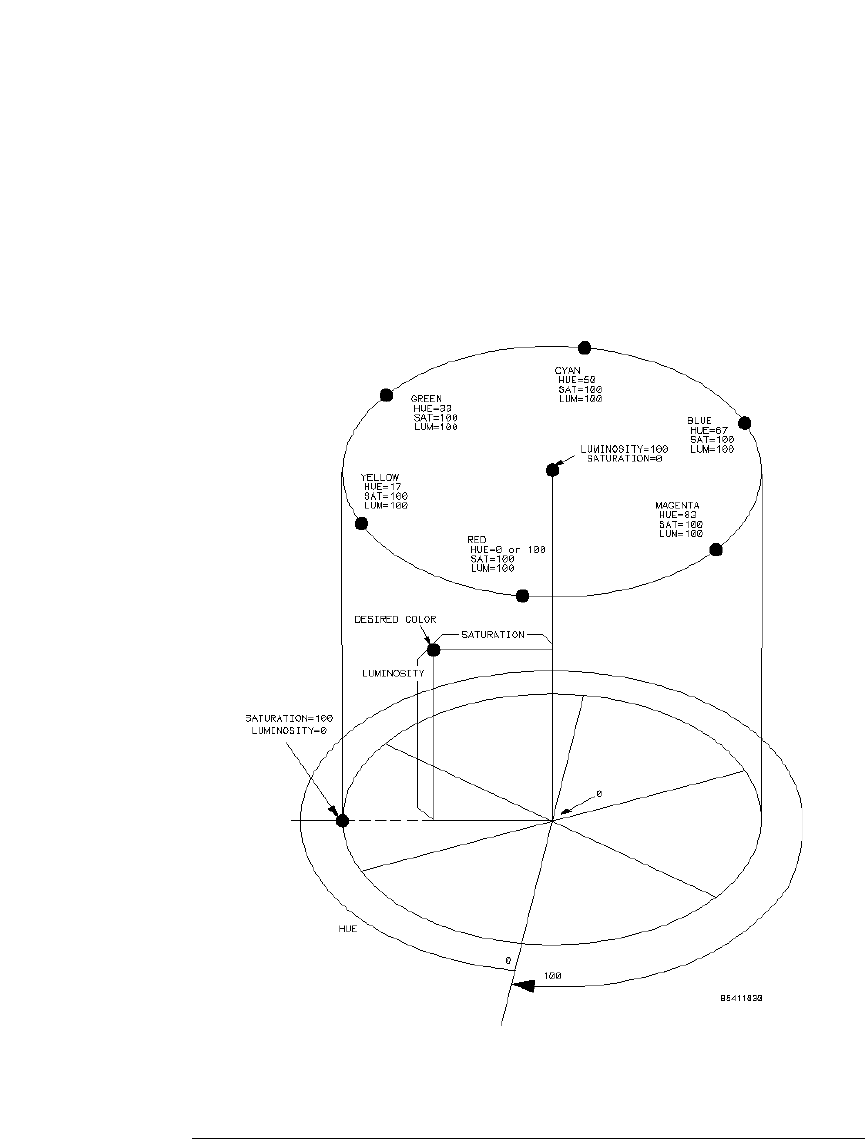

The Color Model
