Logic Analyzer Reference
Probing

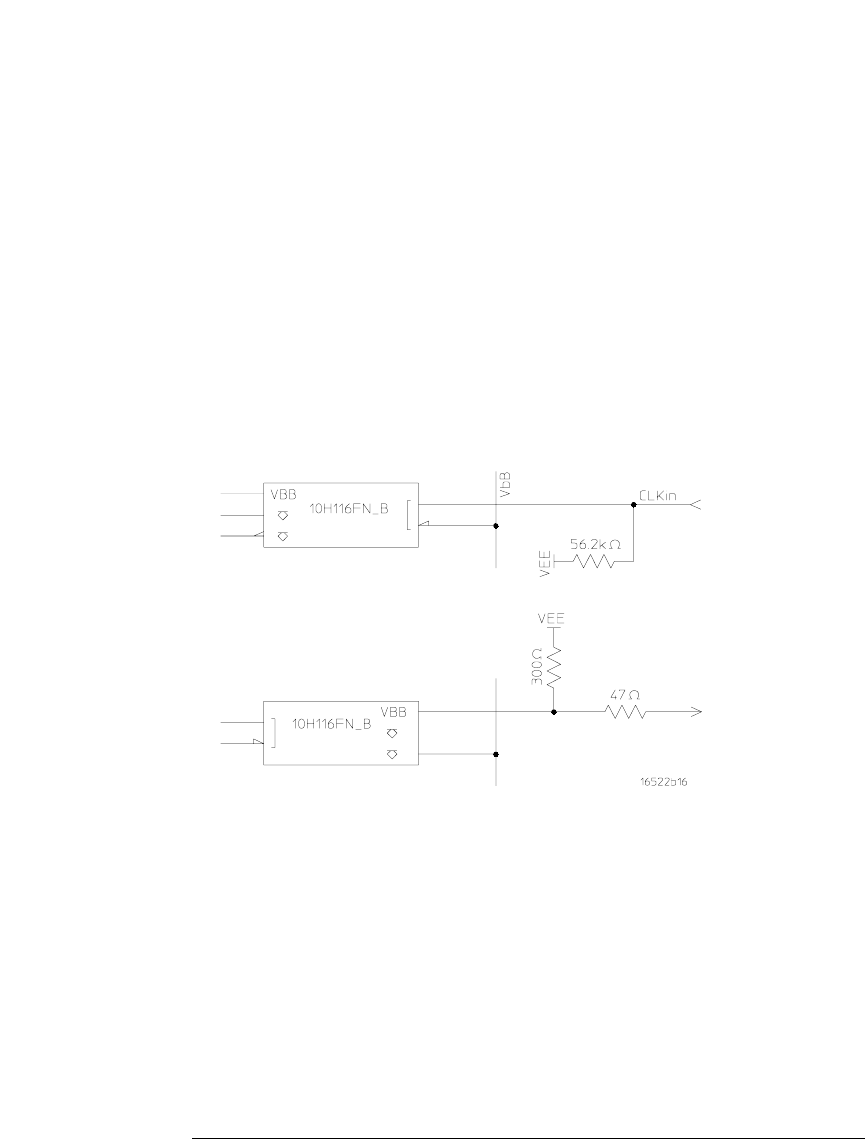

Agilent Technologies 10463A ECL Clock Pod
Clock output type 10H116 differential unterminated; and
differential with 330 ohm to -5.2v and 47 ohm
series
Clock output rate 200 MHz maximum
Clock out delay 11 ns maximum in 9 steps
Clock input type ECL - 10H116 with 50 KW to -5.2 V
Clock input rate DC to 200 MHz
Pattern input type ECL - 10H116 with 50 KW
(no connect is logic 0)
Clk-in to clk-out Approx. 30 ns
Patt-in to recognition Approx. 15 ns + 1 clk period
Recommended lead set Agilent Technologies 10474A
