392
Logic Analyzer Concepts
The Trigger Sequence
Trigger sequence specification
See the following figure, which shows a sequence specification with
four levels. To define the trigger sequence, you specify sequence-
advance, sequence-else, storage, and trigger-on specifications.
Each level except the last has two branch conditions, the sequence-
advance and sequence-else specification. The storage specification
indicates whether data should be stored or not while the logic analyzer
is at that sequence level. (The trigger-on specification is a special
sequence-advance specification that is described in the section
"Trigger on specification.")

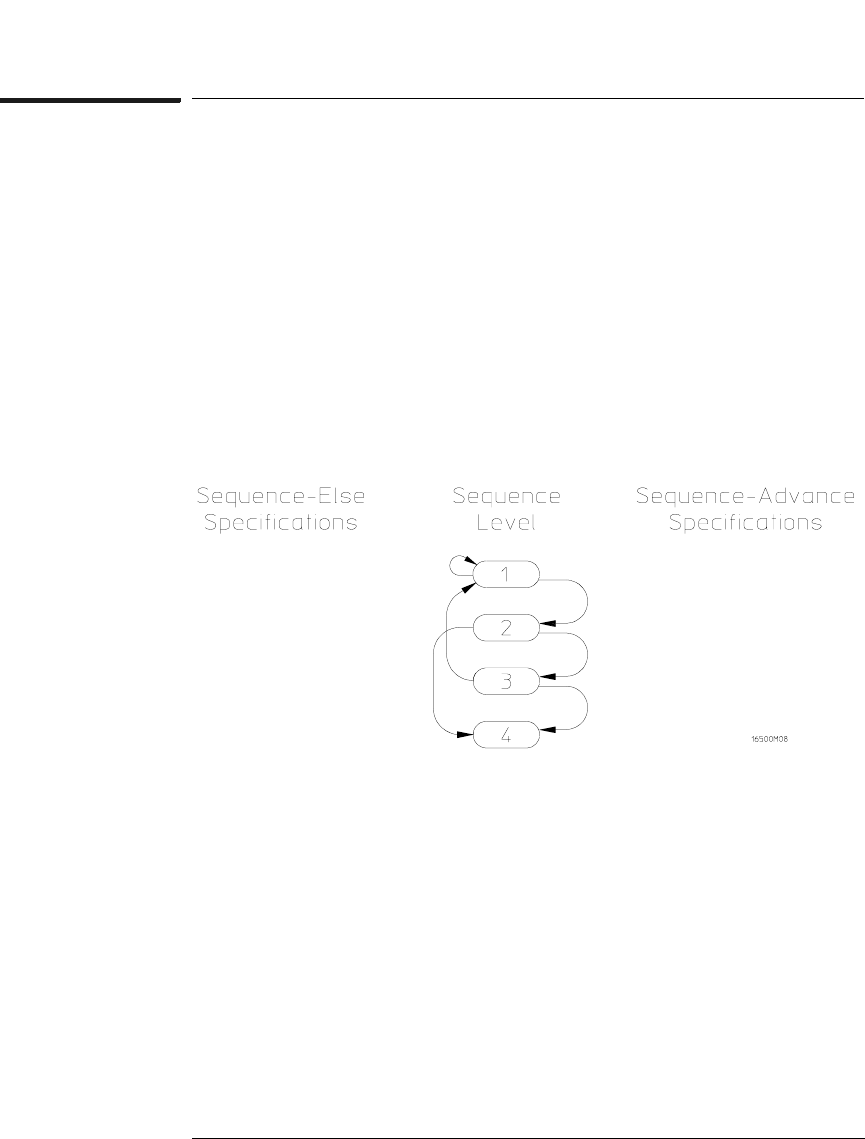

State Analyzer Sequence with Four States
