Label Type Modes
● BLK LEN. (block length): * For the PORT Label Type mode:
0.80" to 8.00" (20.0 to 200.0 mm)
Default: 1.20" (30.0 mm)
* For the PANEL1 Label Type mode:
0.25" to 8.00" (6.0 to 200.0 mm)
Default: 1.20" (30.0 mm)
● FRAME: * For the PORT Label Type mode:
OFF, , , ,
Default: OFF
* For the PANEL1 Label Type mode:
OFF, 1 , 2 , 3 ,
4 , 5 , 6 ,
7 , 8 , 9
Default: OFF
● PRINT (print order): FRONT, REVERSE
Default: FRONT
Panel2 Mode
Specifying a fixed length for each block makes
this label useful for a row of switches (for
example, in a switchboard) or a patch panel. In
addition, the text blocks can be printed in the
order that they were typed in or in the opposite
order, or the text can be printed rotated 90°.
☞ For these types of labels, we recommend using Extra Strength Adhesive Tape.
☞ The PRINT parameter is only available with the PANEL1 Label Type mode.
☞ By using the Numbering function with the PANEL1 Label Type mode, a single label
containing multiple blocks of ascending characters can easily be created, for example,
to label patch panels as shown above. (For details on the Numbering function, refer to
Printing multiple copies with incremental characters on page 36.)

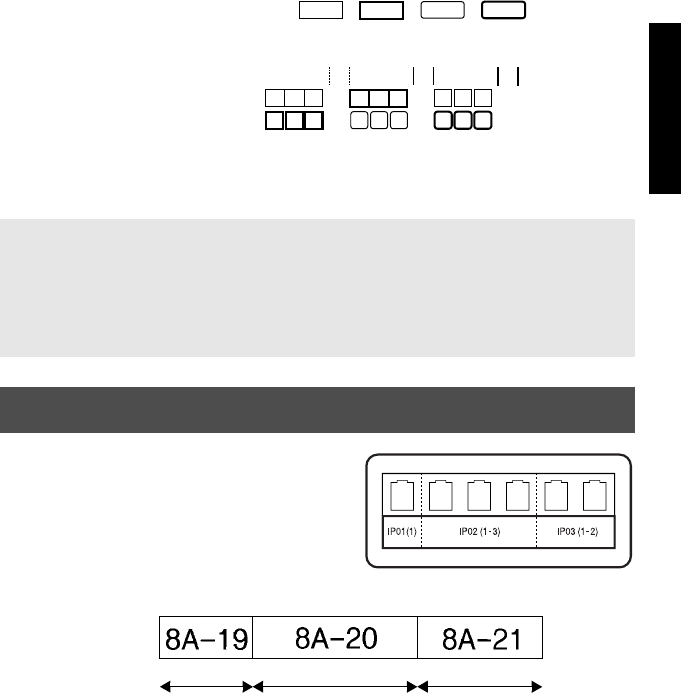

1 2 3 4
Panel2
Block lengthBlock length Block length
Block 2Block 1 Block 3
(Length × Multiple) (Length × Multiple) (Length × Multiple)
