CNWR-811P User Guide
12

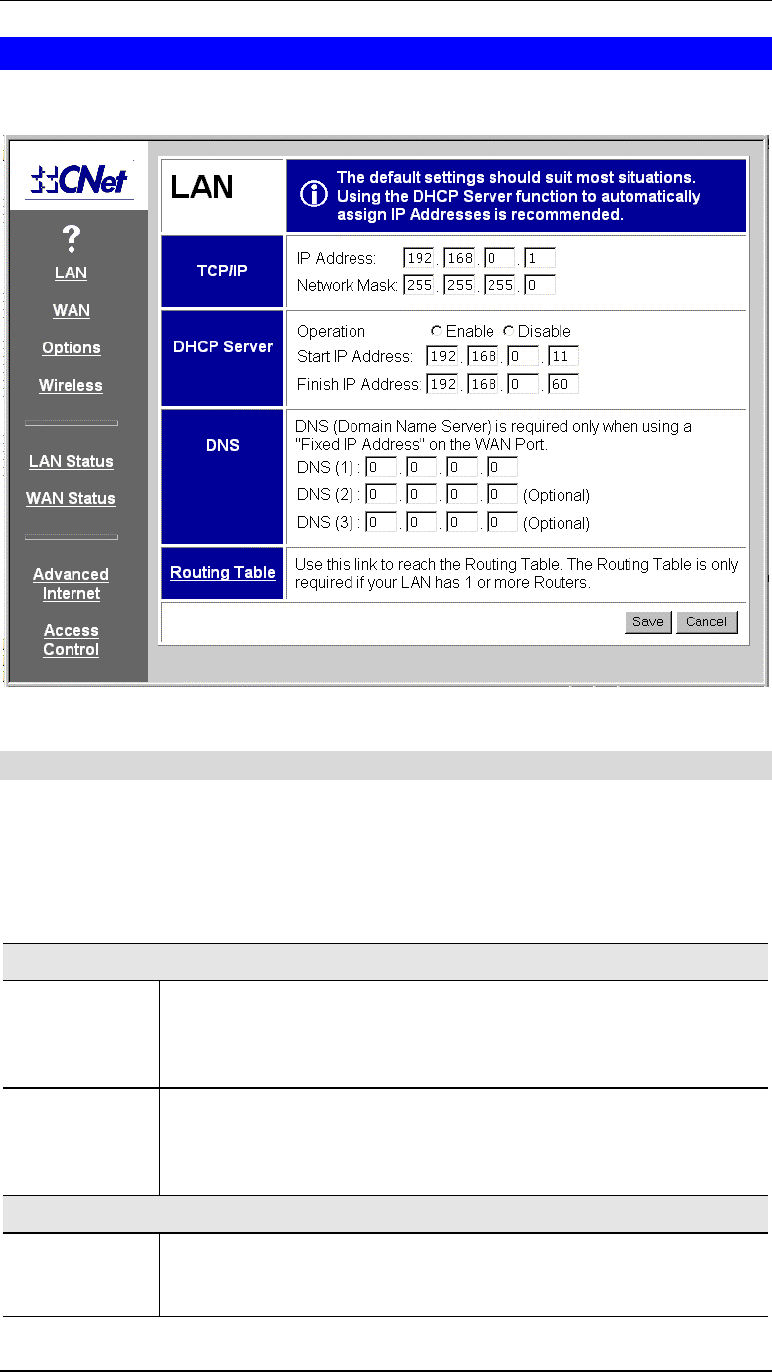

LAN Screen
The LAN screen, like the example below, will be displayed when you first connect.
Figure 6: LAN Screen
LAN Configuration.
For most users, the default values for these fields should be satisfactory, and no changes will be
required.
If your LAN contains an existing Router or Routers, refer to Chapter 6 - Routing.
Data – LAN Screen
TCP/IP
IP Address
IP address for the CNWR-811P. Use the default value of 192.168.0.1
unless the address is already in use or your LAN is using a different IP
address range. In the latter case, enter an unused IP Address from within
the range used by your LAN.
Network Mask
The default value 255.255.255.0 is standard for small (class "C") net-
works. For other networks, use the Network Mask for the LAN segment
to which the CNWR-811P is attached. i.e. the same value as the PCs on
that LAN segment.
DHCP Server
Operation
If Enabled, the CNWR-811P will allocate IP Addresses to PCs on your
LAN. The default and recommended value is Enabled.
If you are already using a DHCP Server, this setting must be
