Hardware Installation
JP1 is used to select the power of the PS/2 keyboard/mouse port.
Selecting 5VSB will allow you to use the PS/2 keyboard or PS/2
mouse to wake up the system.
BIOS Setting
Configure the PS/2 keyboard/mouse wake up function in the Inte-
grated Peripherals submenu (“Super IO Device” section) of the BIOS.
Refer to chapter 3 for more information.
Important:
The 5VSB power source of your power supply must support
≥
720mA.

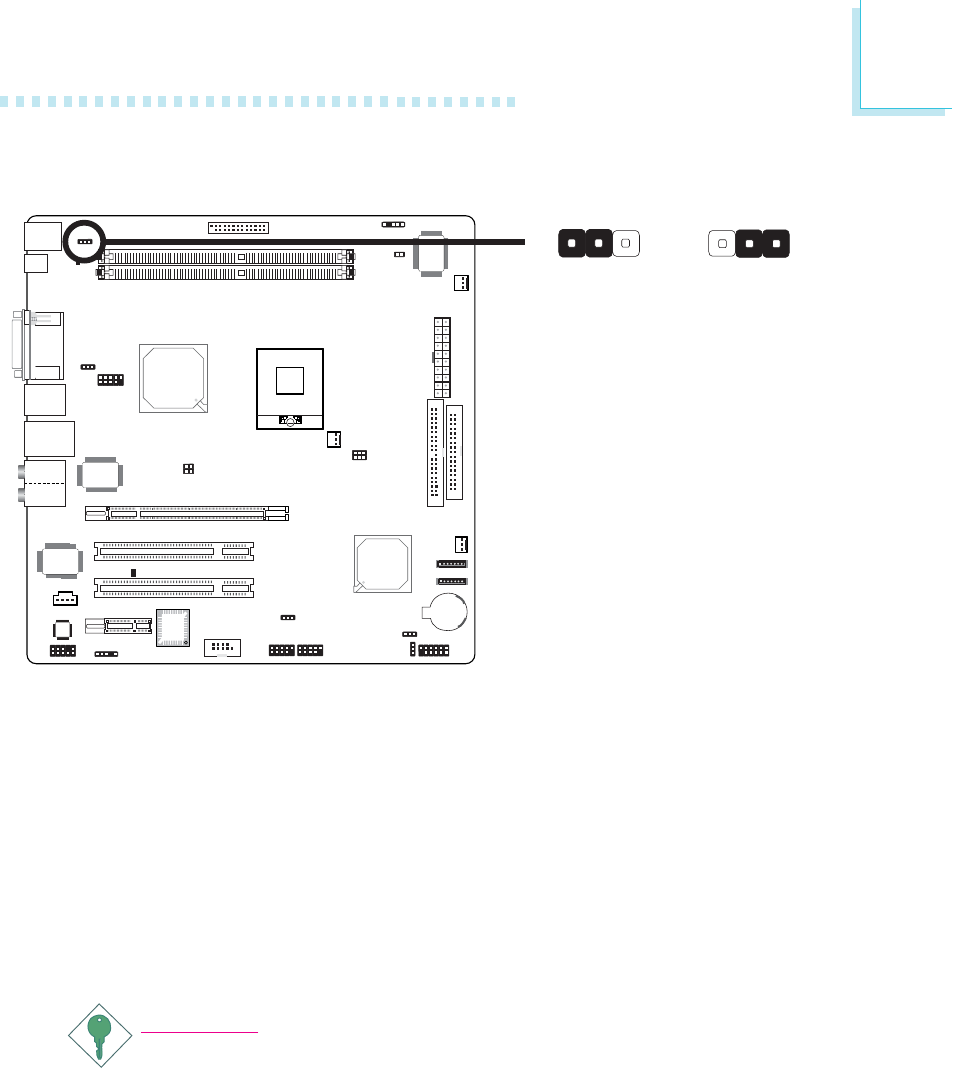

PS/2 Power Select
1-2 On: 5V
(default)
2-3 On: 5VSB
X
JP1
