Hardware Installation
Audio
W
Front audio
W
Rear audio
Front R/L
Line-in
Mic-in
Rear R/L
Center/
Subwoofer
Side R/L

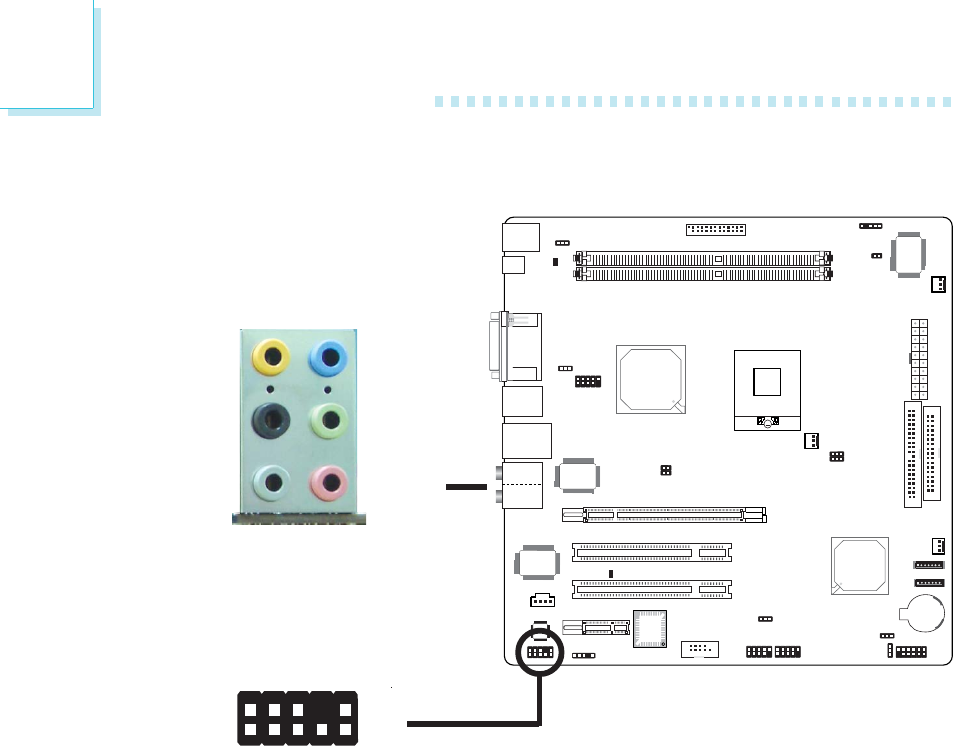

Rear Panel Audio (CN8)
Center/Subwoofer Jack (Orange)
This jack is used to connect to the center and subwoofer speak-
ers of the audio system.
Rear Right/Left Jack (Black)
This jack is used to connect to the rear right and rear left speak-
ers of the audio system.
Side Right/Left Jack (Gray)
This jack is used to connect to the side left and side right speak-
ers of the audio system.
Line-in (Light Blue)
This jack is used to connect any audio devices such as Hi-fi set,
CD player, tape player, AM/FM radio tuner, synthesizer, etc.
1
Mic
Mic Power
AuD_R_Out
N. C.
AuD_L_Out
GND
AuD_Vcc
Key
2
10
9
AuD_R_Return
AuD_L_Return
