Hardware Installation
DVI-D/PCIE Select
The system board allows connecting a device that supports DVI-D
(such as digital LCD monitor) to either the DVI-D port at the rear
panel or the DVI-D port(s) on your PCI Express x16 card. You
cannot use devices connected to both the DVI-D port and PCI

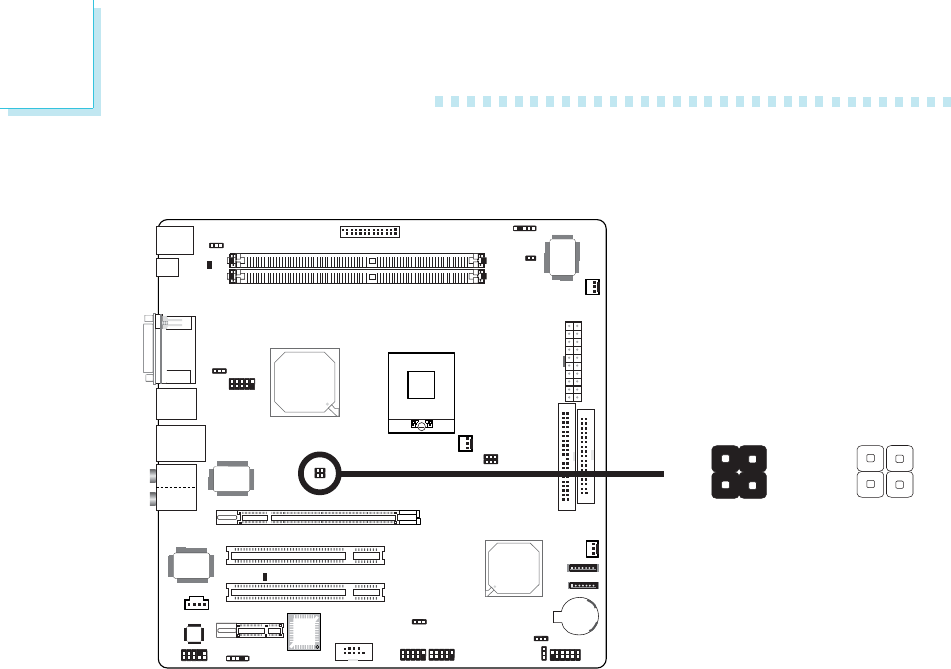

Express x16 card at the same time. J23 is used to select the inter-
face of the device you want to use.
X
J23
1
3
2
4
1
3
2
4
1-2, 3-4 On:
DVI-D
(at rear panel)
All Off:
PCI Express
x16 card
