51
2
Hardware Installation

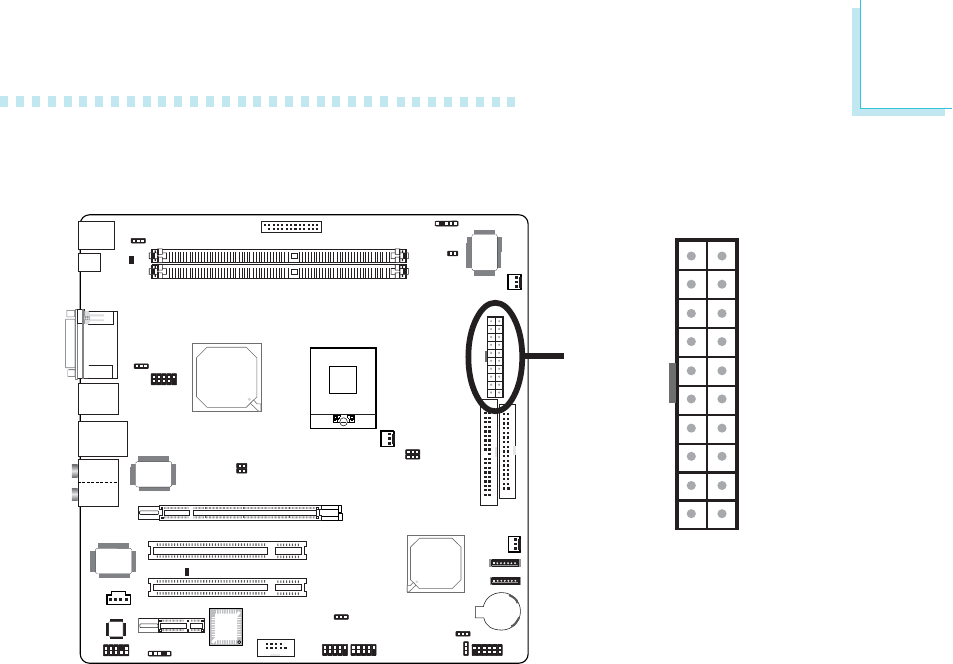

Power Connector
Use a power supply that complies with the ATX12V Power Supply
Design Guide Version 1.1. An ATX12V power supply has a standard
20-pin ATX main power connector that must be inserted onto the
J19 connector.
The system board requires a minimum of 150 Watt power supply
to operate. Your system configuration (amount of memory, add-in
cards, peripherals, etc.) may exceed the minimum power requirement.
To ensure that adequate power is provided, use a 250 Watt (or
greater) power supply.
X
+12V
10
1
20
11
3.3V
3.3V
Ground
+5V
Ground
+5V
Ground
PW-OK
5VSB
+5V
3.3V
-12V
Ground
PS-ON
Ground
Ground
Ground
-5V
+5V
