Instruction Manual
IM-105-4000, Original Issue
August 2005
OPM 4000
10-4

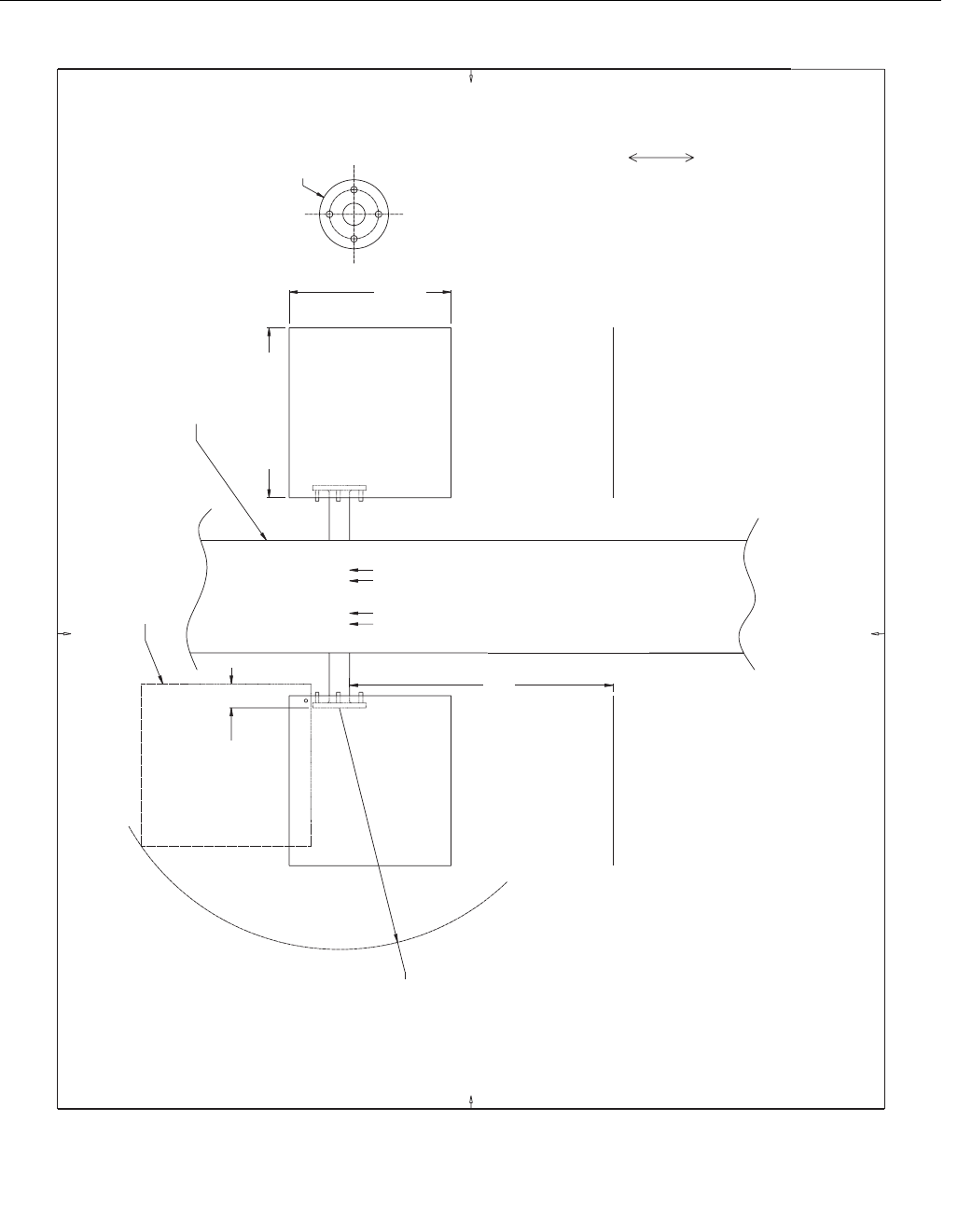

AIR PURGE/WEATHER COVER MECHANICAL INSTALLATION
AIR PURGE/WEATHER COVER
MECHANICAL INSTALLATION
LEAVE 3 IN. (76 mm)
CLEARANCE FROM
FLANGE FACE
FOR SWINGING
TRANSCEIVER
MINIMUM SWING
CLEARANCE
34 IN. (864 MM) FROM
FLANGE CENTER
60 IN.
(1524 MM)
PLATFORM
SUGGESTED MECHANICAL INSTALLATION FOR A
DUAL BLOWER AIR PURGE/WEATHER COVER SYSTEM
GAS FLOW
RETRO
21.0 IN.
(533 MM)
(2) COVERS
STACK OR BREECHING
WALL OD
COVER IN UPRIGHT POSITION
STD. 3 IN. (76 mm)
150 LB PIPE
FLANGE
6 IN. (152,4 MM)
BOLT CIRCLE
FLANGE
ORIENTATION
30.5 IN.
(774,7 MM)
(3) COVERS
VERTICAL AXIS
