HP OmniBook 900 Removal and Replacement 2-19

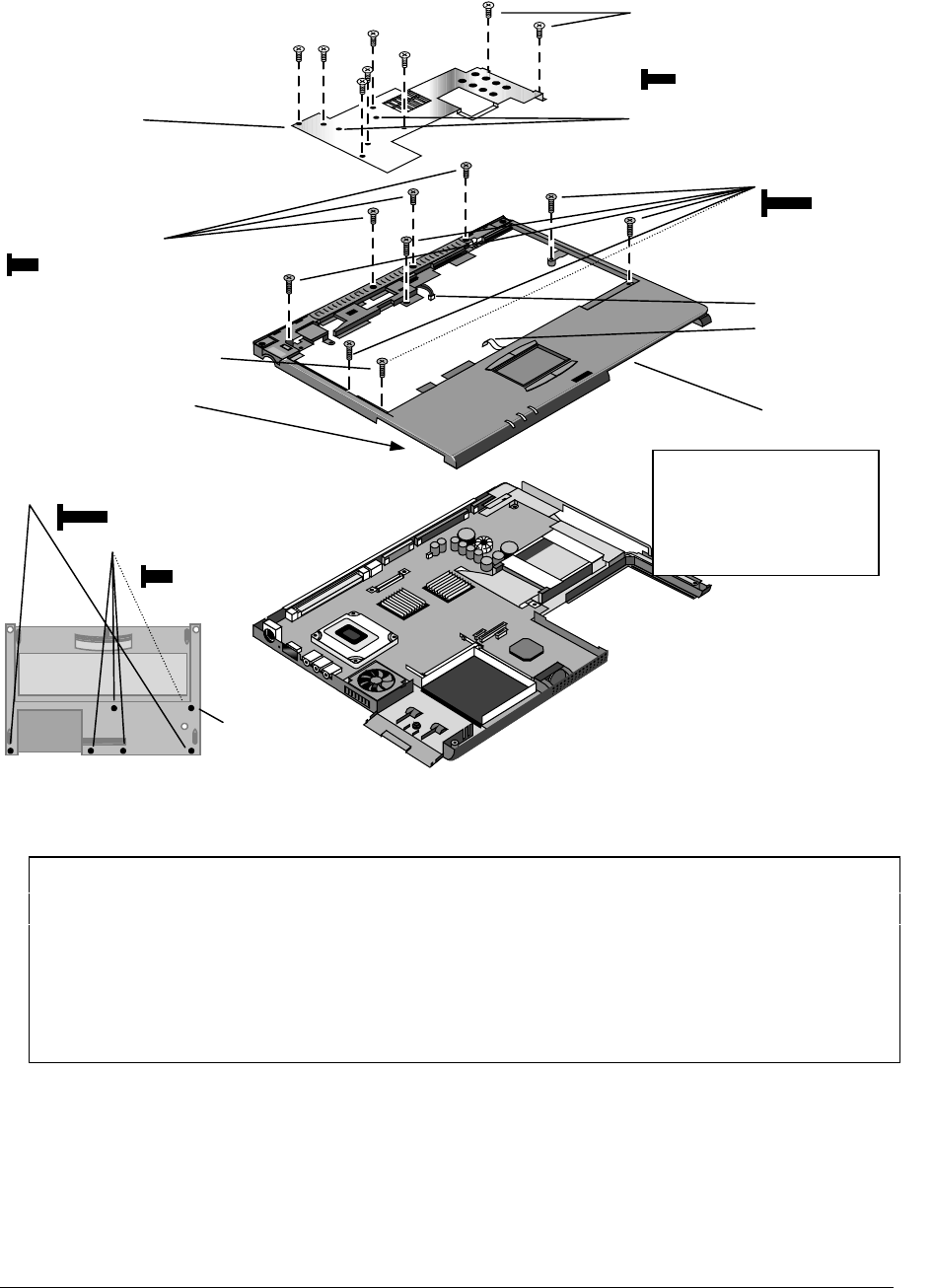

Figure 2-10. Removing the Top Case
Reassembly Notes
Note: Installing a New Top Case
• Transfer the following items from the old top case to the new one:
Touch pad and support.
Left hinge support.
• Press down on the touch pad support plate while sliding it into place. Make sure the support is
held down at its left and right edges. Check the action of the click buttons before installing the
top case.
• Engage the tab at the front of the top case, then lower the top case onto the bottom case.
• It may be easier to plug in the touch pad flex cable while you are lowering the top case onto the
bottom case—rather than waiting until after the top case is fully installed.
Top case
Microphone cable
Touch pad cable
Heatsink
Screw, M2.5×8mm
Screw, M2.5×5mm
13-inch
display only
Screw, M2.5×8mm
Screw, M2.5×5mm
Screw, M2×5mm
8-OmniBook 900
†,
6-OmniBook 900B
Note: Do not put screws
in these two holes.
12 inch
display only
Note: OmniBook 900†
heatsink shown. For the
OmniBook 900B, the
heatsink and mounting
differ.
Note: On recent units,
a HDD bracket is
installed in this area.
