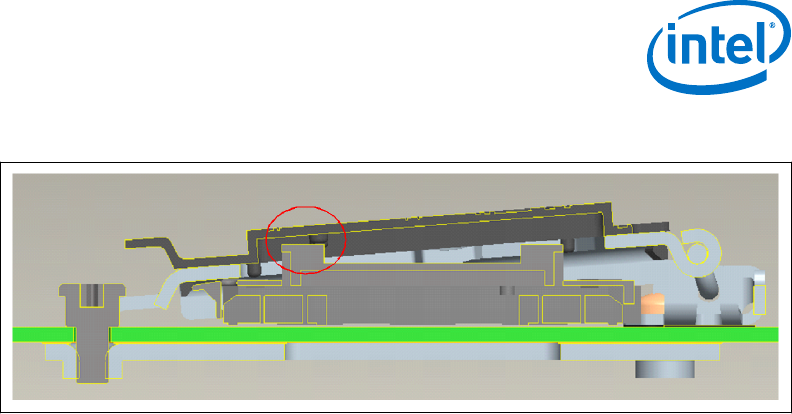

Figure 12. ILM Cover and PnP Cover Interference
As indicated in Figure 12 on page 23, the pick and place cover cannot remain in place
and used in conjunction with the ILM Cover. The ILM Cover is designed to interfere
and pop off if the pick and place cover is unintentionally left in place. The ILM cover
will also interfere and pop off if the ILM is closed with a processor in place in the
socket.
Independent Loading Mechanism (ILM)—LGA1150 Socket
LGA1150 Socket
September 2013 Application Guide
Order No.: 328999-002 23
