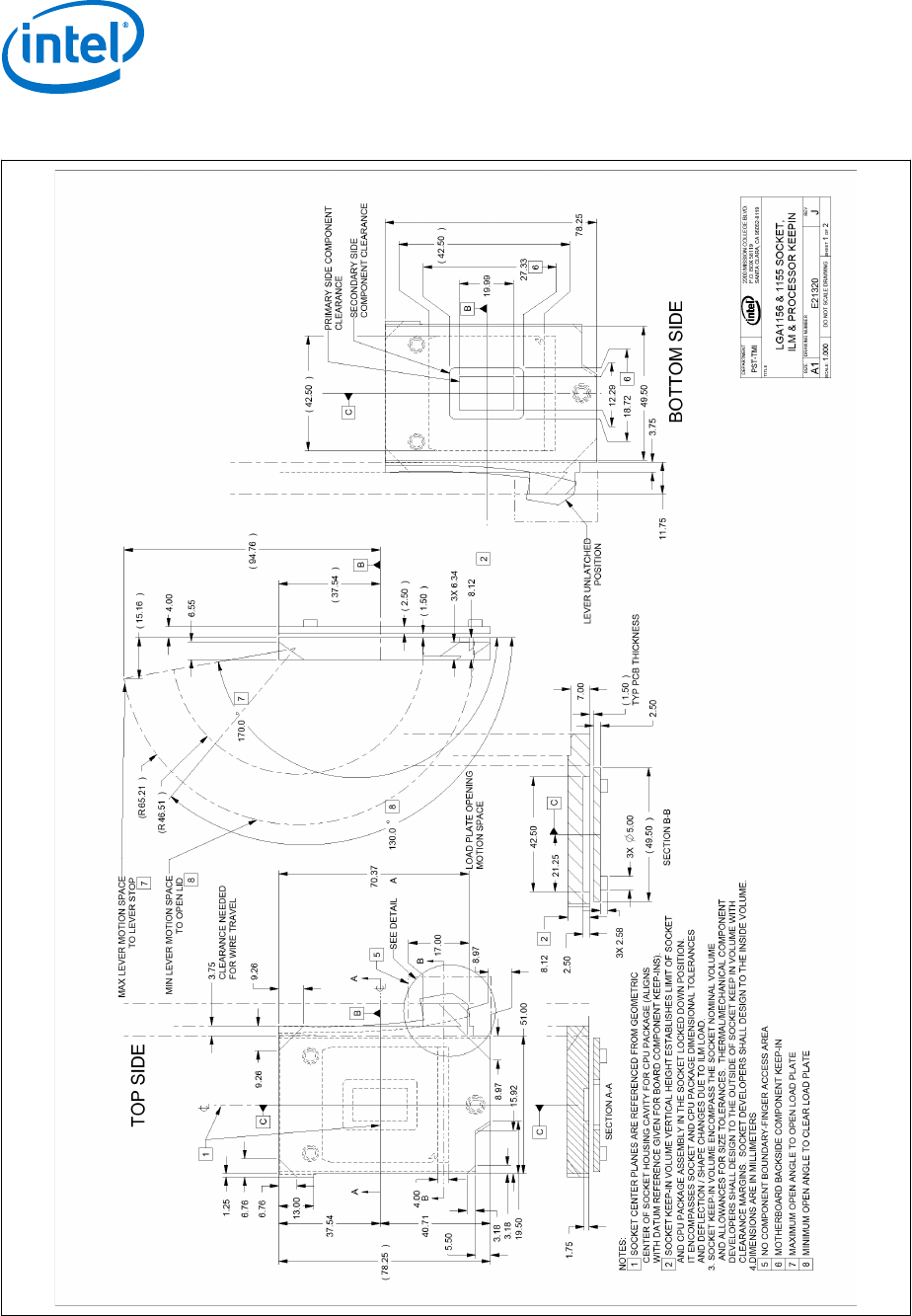

Figure 16. Socket / Processor / ILM Keep-out Zone Primary Side (Top)
LGA1150 Socket—Mechanical Drawings
LGA1150 Socket
Application Guide September 2013
32 Order No.: 328999-002
