Overview

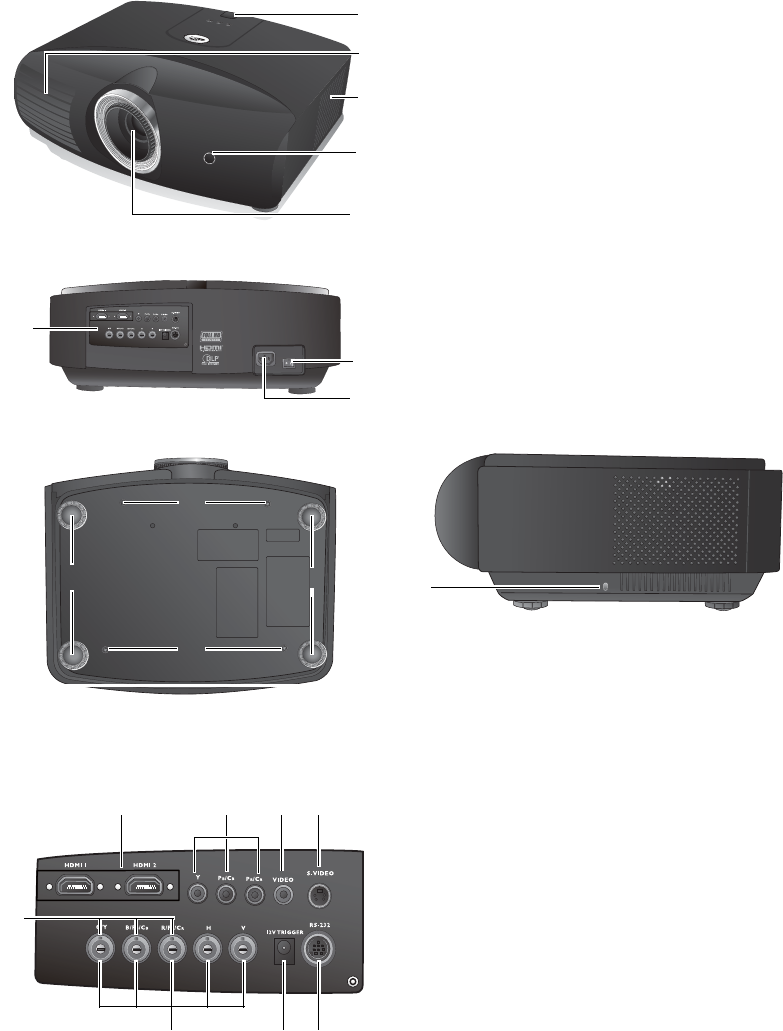

Projector exterior view
Front and upper side view
Rear view
Under and side view
Connector panel
See "Connecting with video equipment" on page 15 for connection details.
1. Rear IR sensor
2. Vent (heated air exhaust)
3. Dust filter grill (cool air intake)
4. Front IR sensor
5. Projection lens
6. Connector panel (see below for details)
7. Main AC power switch
8. Power cable socket
9. Adjustable feet
10. Ceiling mounting holes
11. Kensington lock slot
1
2
3
4
5
7
8
6
10
10
9
9
11
12. HDMI ports
13. Component Video inputs (RCA)
support Y/P
B/PR or Y/CB/CR video signal
14. Composite Video input (RCA)
15. S-Video input (mini 4-pin DIN)
16. Component video inputs (BNC)
support Y/P
B/PR, Y/CB/CR, or RGB video
signal
17. RGB High Definition inputs (BNC)
supports RGBHV video or PC signal
18. 12V DC output terminal
Used to trigger external devices such as
an electric screen or light control, etc.
Consult your dealer for how to connect
these devices.
19. RS-232 port for wired remote control
12 13 14 15
191817
16
