1.TROUBLESHOOTING FOR THE HARDWARE
Clearing a Paper Jam 21
1 TROUBLESHOOTING FOR THE HARDWARE
Paper jam in the duplexing unit
y Do not touch the metal portion of the guide plate of the duplexing unit.
This could burn you.
y Operate the duplexing unit while connected to the equipment.
Do not operate the duplexing unit when separated from the equipment. This could cause a breakdown of the
equipment or could injure you.
8

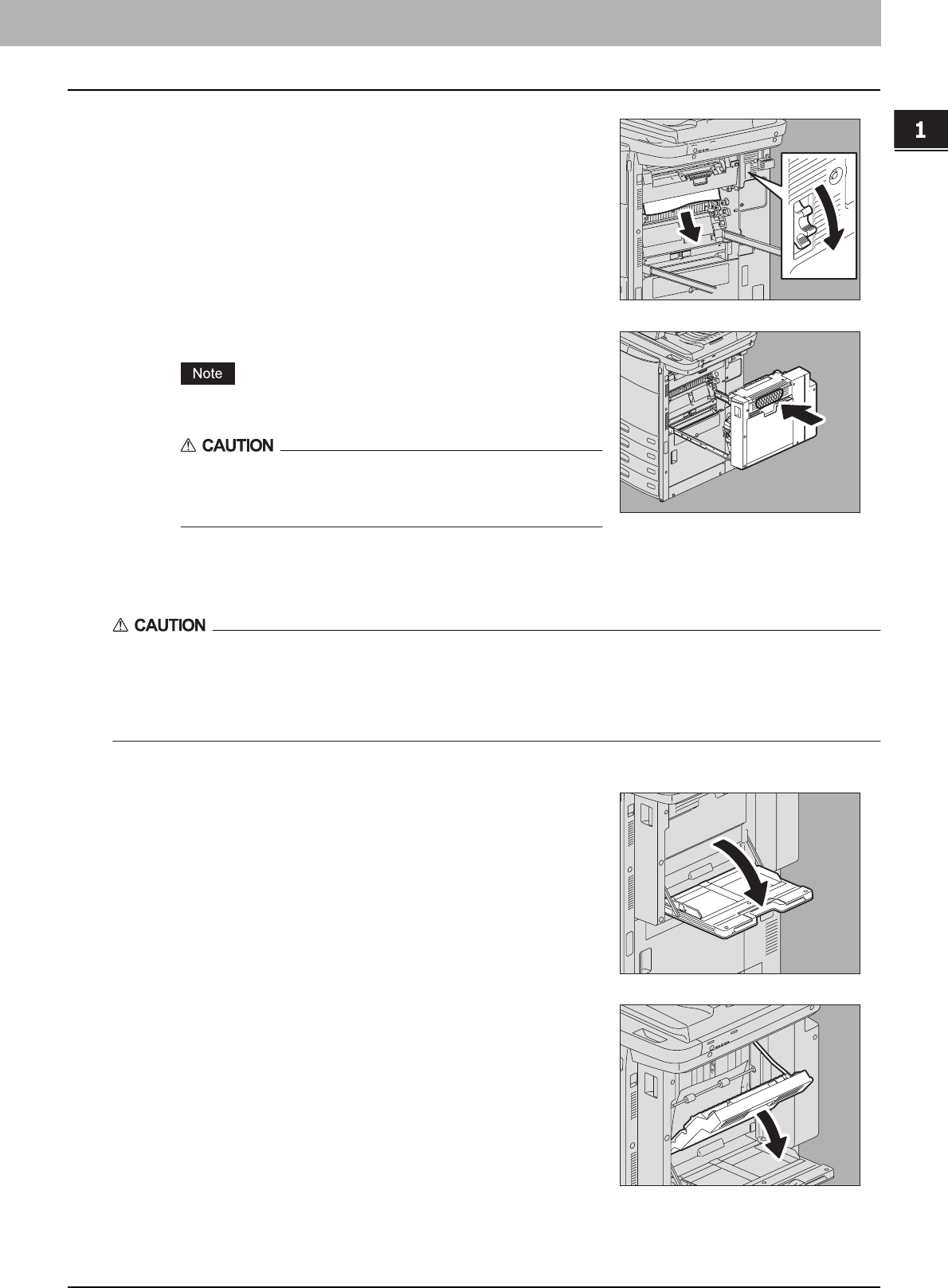

Turn the green dial and remove the paper coming out
of the lower part of the fuser unit.
9
Return the duplexing unit to its original position.
Hold the position shown in the figure when closing it.
Do not put your hand or fingers on the duplexing unit when
closing it.
They could be caught and this could injure you.
1
Open the bypass tray.
2
Open the duplexing unit cover.
