52 Replacing the Waste Toner Box
Replacing the Waste Toner Box
When the waste toner box becomes full, the symbol for replacement of the waste toner box blinks and the message
“Dispose of used toner” appears. Replace the waste toner box following the procedure below.
Never attempt to incinerate waste toner boxes.
Dispose of used toner cartridges and waste toner boxes in accordance with local regulations.

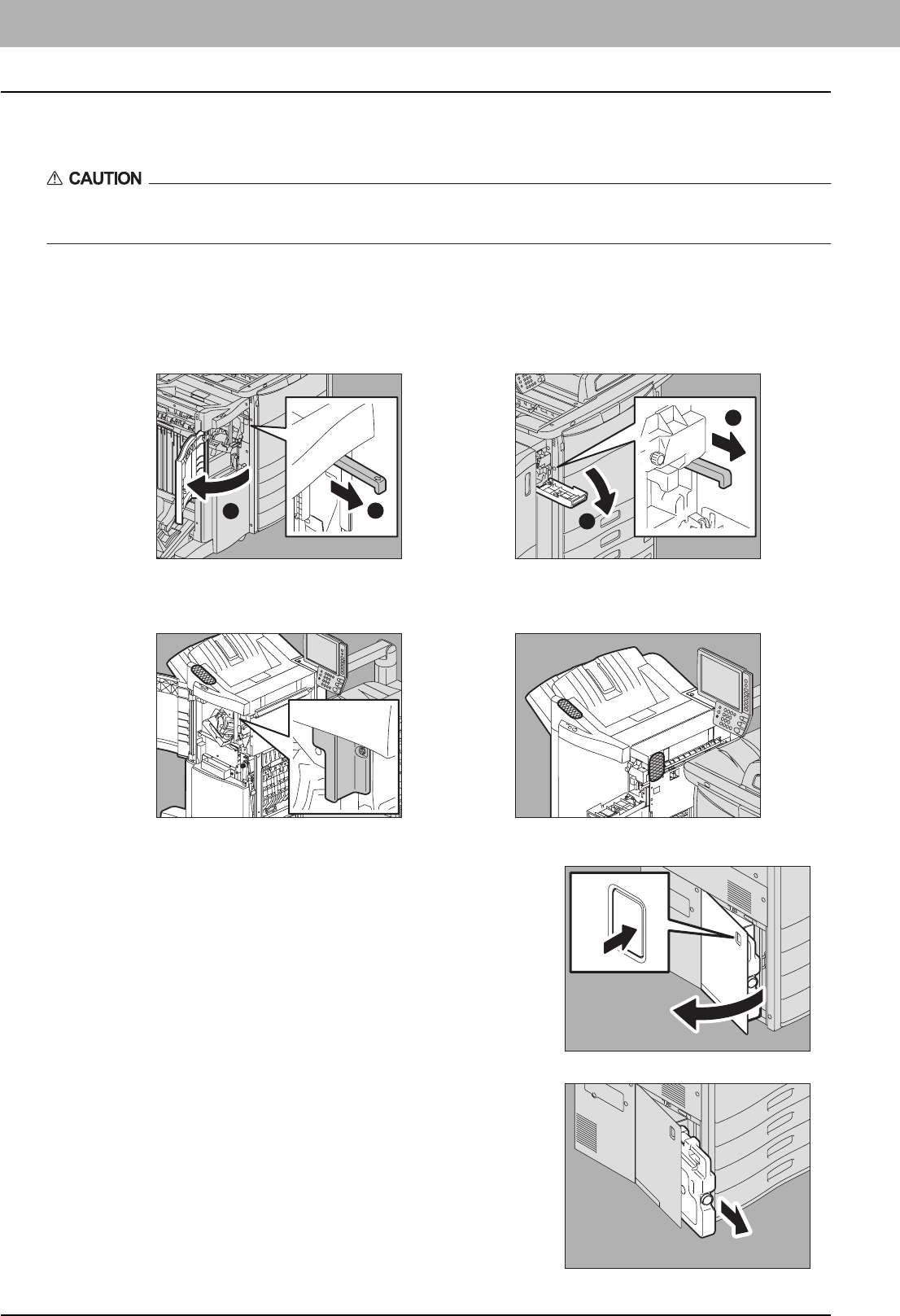

1
Separate the Finisher from the equipment when it is installed.
1) Open the front cover of the Finisher when the Hole Punch Unit is not installed. Open the Hole Punch Unit cover
when the Hole Punch Unit is installed.
2) Pull the knob to unlock the Finisher.
3) Move the Finisher until it stops putting your hands on the positions shown in the figure.
2
Press the button on the waste toner box cover to
open the cover.
3
Remove the waste toner box.
1
1
2
2
When the Hole Punch Unit is not installed
When the Hole Punch Unit is installed
When the Hole Punch Unit is not installed
When the Hole Punch Unit is installed
