60 Chapter 3
8.
Snap off the bezel carefully, and then remove the LCD bezel from the LCD module.
Removing the Speakers (14.1” TFT LCD)
1.
See “Removing the Battery Pack” on page 49
2.
See “Removing the Hinge Caps” on page 56
3.
See “Removing the Middle Cover” on page 56r
4.
See “Removing the Keyboard” on page 57
5.
See “Removing the Cable Cover” on page 57
6.
See “Removing the LCD Module” on page 58
7.
See “Removing the 14.1” TFT LCD Bezel” on page 59
8.

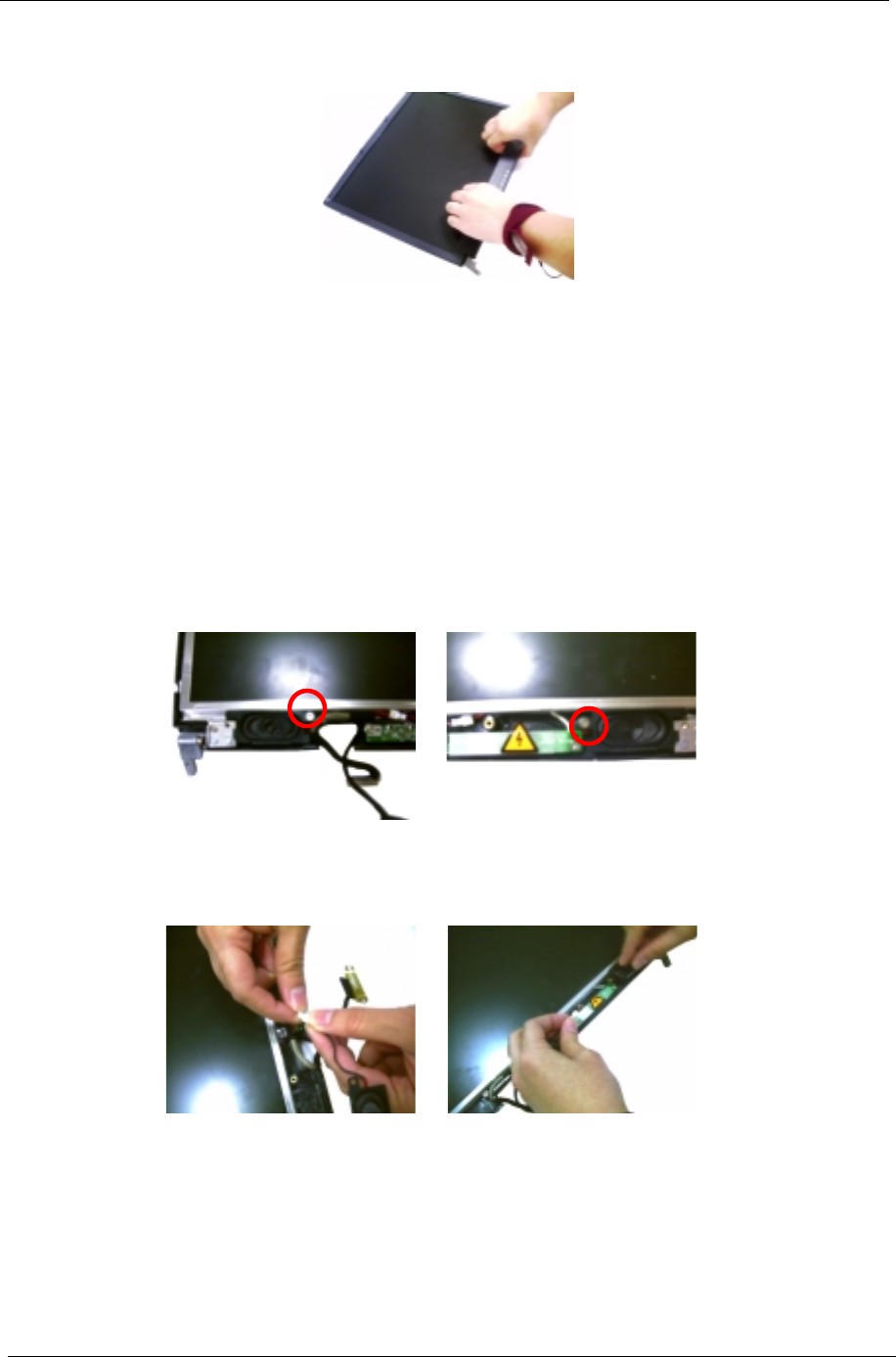

To remove the left and right speaker, first remove the two screws from the speakers.
9.
To detach the speakers from the LCD panel, first disconnect the speaker cables from the left and right
speaker respectively and then remove the speakers from the LCD module.
Removing the Speakers (13.3” TFT LCD)
1.
See “Removing the Battery Pack” on page 49
2.
See “Removing the Hinge Caps” on page 56
3.
See “Removing the Middle Cover” on page 56r
4.
See “Removing the Keyboard” on page 57
5.
See “Removing the Cable Cover” on page 57
