Actiontec 54 Mbps Wireless DSL Gateway User Manual
9
Chapter 2 Performing a Quick Setup

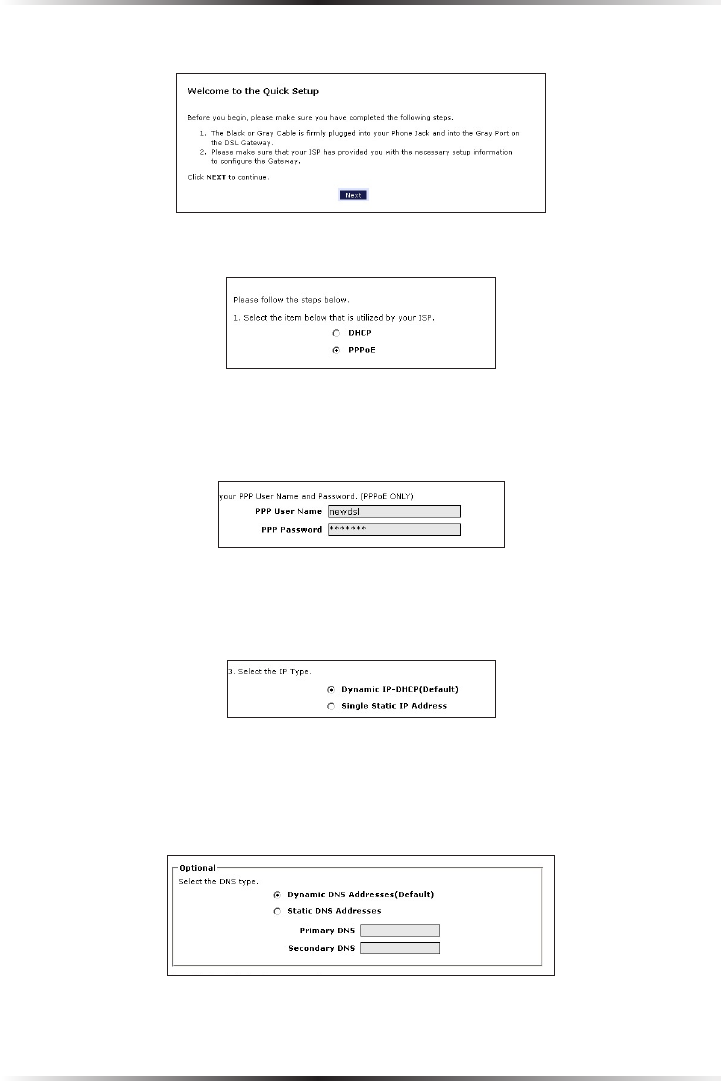

4. Follow the instructions in the “Welcome to the Quick Setup” screen, then click Next.
5. At the top of the next window, select PPPoE or DHCP.
5a. If PPPoE was selected in step 5, the default user name and password are
entered in the appropriate text boxes.
If “DHCP” was selected, go to step 6.
5b. If PPPoE was selected in step 5, select the IP type (“Dynamic IP-DHCP
[Default]” or “Single Static IP Address”). If Single Static IP Address was select-
ed, enter the address in the appropriate text box.
6. Optional - Select the DNS type (“Dynamic DNS Addresses [Default]” or
“Static DNS Addresses”). If Static DNS Addresses was selected, enter the prima-
ry and secondary DNS addresses in the appropriate text boxes. If unsure what
to enter in this section, contact the ISP.
