Actiontec 54 Mbps Wireless DSL Gateway User Manual
35
Chapter 5 Configuring Advanced Settings

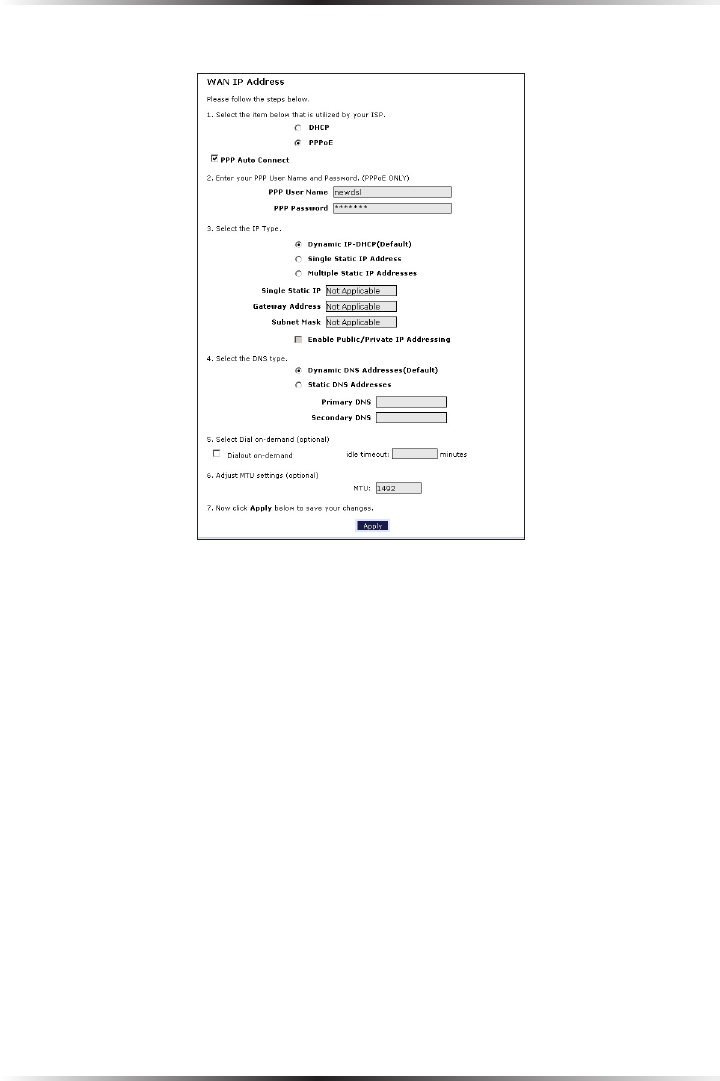

The “WAN IP Address” screen appears.
WAN IP Address allows manual set up of the IP address of the Gateway. To do this:
☞
Note: Some DSL providers use PPPoE to establish communica-
tion with an end user. Other types of broadband Internet con-
nections (such as fixed point wireless) may use either DHCP or
static IP address. If unsure which connection is present, check
with Verizon before continuing.
1. Select “DHCP” or “PPPoE,” depending on the type of connection the ISP uses.
If PPP Auto Connect is being used, click in the appropriate check box.
2. If using PPPoE was selected in step 1, enter the user name and password in the
appropriate text boxes.
3. Select the IP type. If “Single Static IP Address” was selected, enter the IP
address in the “Single Static IP” text box. If “Multiple Static IP Addresses” was
selected, enter the designated gateway IP address and subnet mask address in
the “Gateway Address” and “Subnet Mask” text boxes, respectively.
