Actiontec 54 Mbps Wireless DSL Gateway User Manual
11
Chapter 2 Performing a Quick Setup

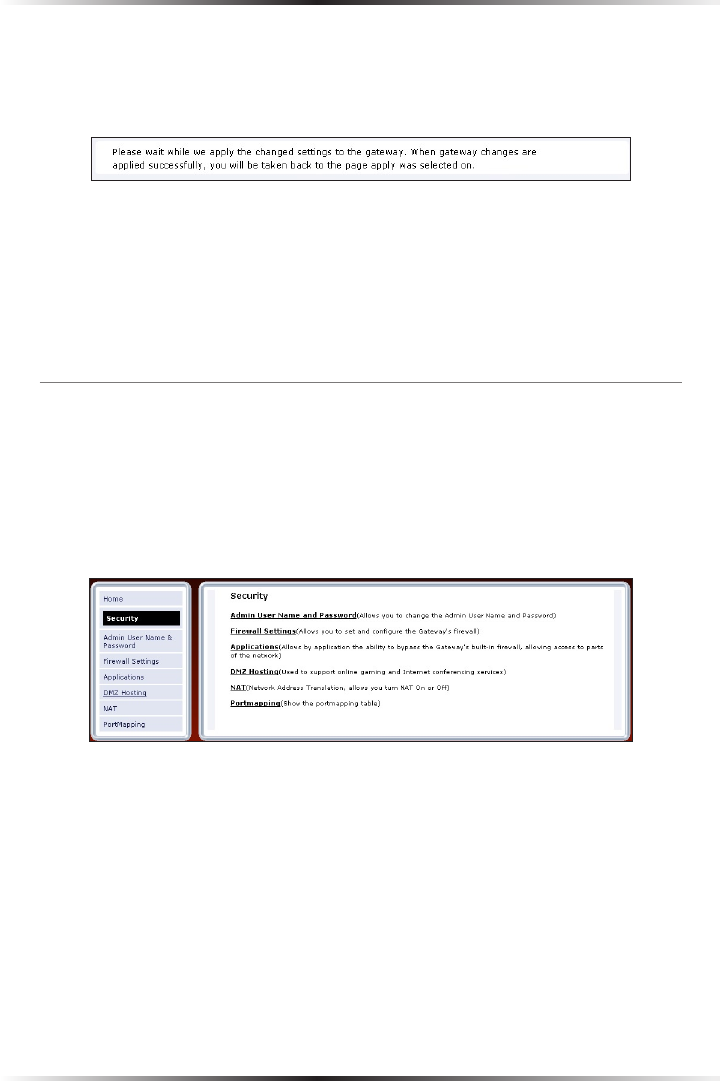

7. Click Apply at the bottom of the screen.
8. Read the instructions on the next screen. The Gateway is successfully
configured.
The Power light flashes rapidly while the Gateway restarts, then glows steadily
green when fully operational. The Internet light will also glow steadily green. The
Gateway is now configured and users can start surfing the Internet.
If an error appears, stating the Web browser was unable to connect to the Internet,
check the configuration settings. Ensure all the information required by the ISP is
entered correctly.
Changing the Password
To create or change the password allowing access to the Gateway’s Web
Configuration screens, follow these instructions:
1. From the “Home” screen, select Security.
2. The “Security” screen appears. Select “Admin User Name and Password.”
