Actiontec 54 Mbps Wireless DSL Gateway User Manual
51
Chapter 6 Configuring Security Settings

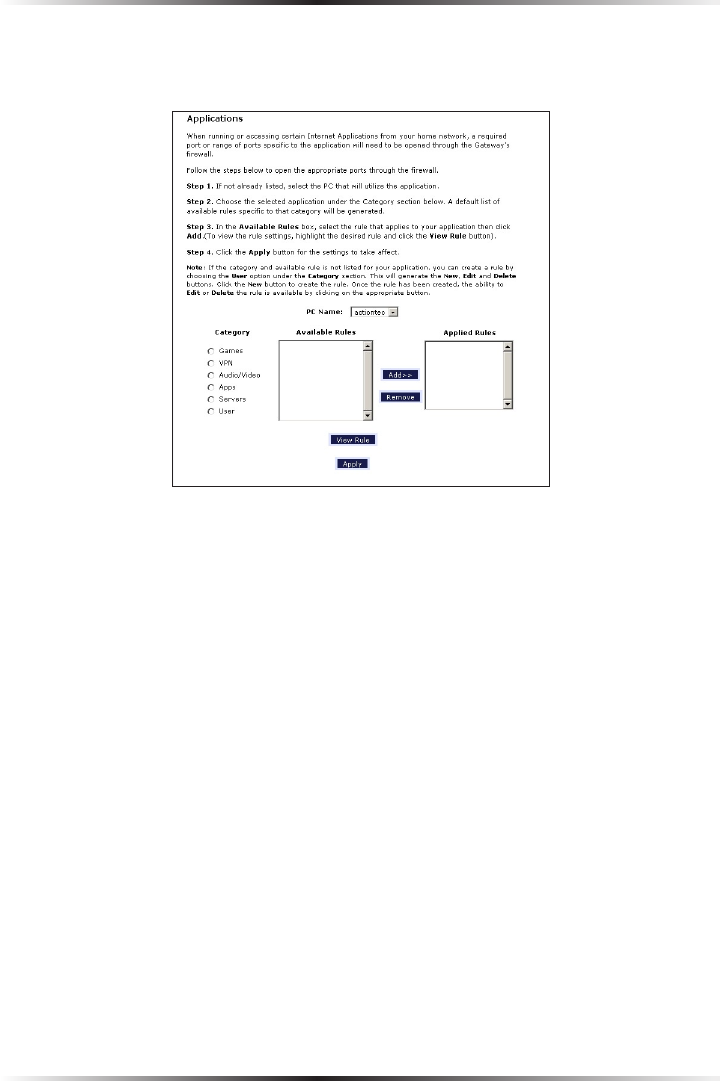

Applications
Selecting Applications in the Security screen generates the “Applications” screen.
This screen allows certain programs to bypass the Gateway’s built-in firewall,
allowing access to parts of the network (for hosting a Web or ftp server, for exam-
ple). To use, select the name of a computer on the network from the “PC Name”
drop-down list, then click Add. Next, select a “Category” by clicking the appropri-
ate radio button. In the “Available Rules” list box, select a game, application, server,
etc., then click Add>>. The selected item appears in the “Applied Rules” list box.
Repeat for each item needed
To remove an item from the Applied Rules list, highlight it, then click Remove.
To view an item’s rules (forwarded ports, etc.), highlight it, then click View Rule.
When finished with this screen, click Apply to save the changes.
