Actiontec electronic GT704WG Network Router User Manual



2
Actiontec 54 Mbps Wireless DSL Gateway User Manual
3
Chapter 1 Introduction
s PAP/CHAP authentication, administrative passwords through Telnet
s 64-, 128-, and 256-bit WEP/WPA wireless LAN security
s IEEE 802.3 Ethernet standard compliance
s 10/100 Base-T Ethernet ports (4)
s Fast Ethernet flow control support
s Web-based configuration setup
s FTP firmware upgradeable
s Web download support
s 802.11b/g support
Getting to Know the Gateway
This section contains a quick description of the Gateway’s lights, ports, etc.
The Gateway has several indicator lights (LEDs) on its front panel and a series of
ports on its rear panel.

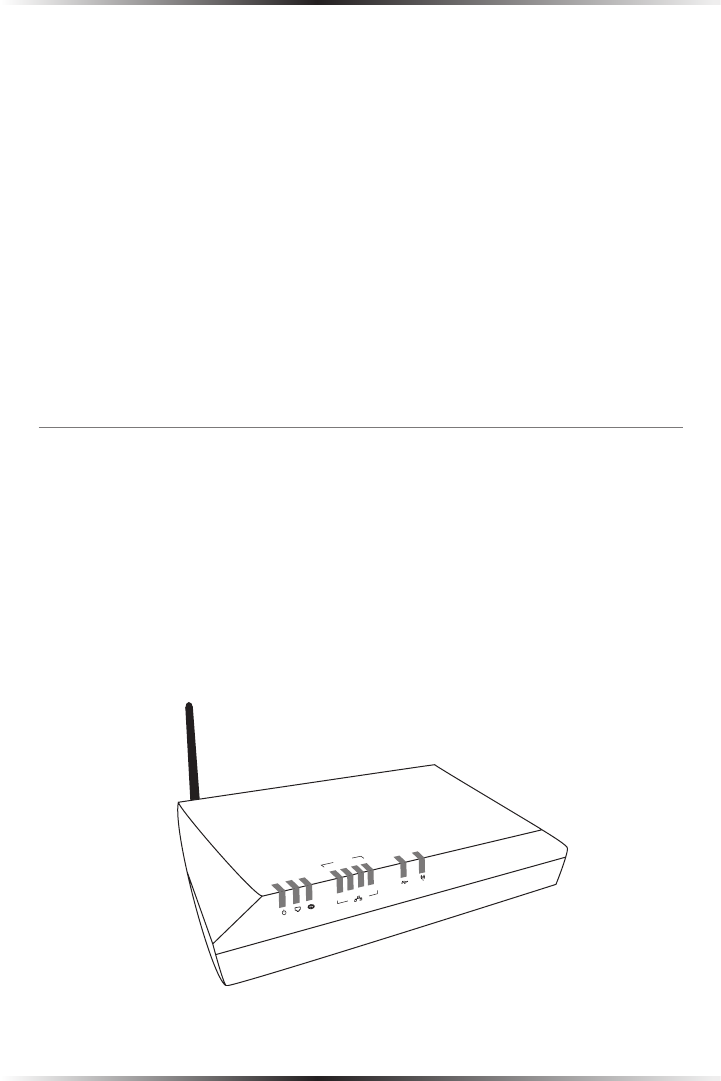

Front Panel
The front panel of the Gateway features nine lights: Power, DSL, Internet,
Ethernet (4), USB, and Wireless.
Power
DSL
Internet
Ethernet
1
Wireless
2
3
4
USB
1
2
3
4
