Installation and Wiring
15
VTM-D15/A 15" MultiMedia Touch Panel Systems
Connecting the cables on a VTM-D15/A table top panel
1. Connect the VGA Input, Touch Screen Signal, and Power cables to the VTM-D15/A touch
panel as shown in FIG. 11.
2. Once the installation of the Table Top Bracket and the connection of the appropriate cables is
finished, follow the steps in the Wiring the AXB-TPI/3 section on page 18.
Surface Mount Installation (VTM-D15/AB and D15/ASB)
This process involves installing the Wall Mount Bracket (VTM-WMB) and connecting the
appropriate cables to their respective locations. The surface mount is used to mount the panel to any
vertically level surface.
Installing the Surface Mount support bracket
The VTM-WMB Surface Mount Kit consists of four screws, a Surface Mount, and Monitor
Brackets (FIG. 12).
1. Carefully use both hands to close the display stand by pulling back on the Fold switch (FIG. 8).

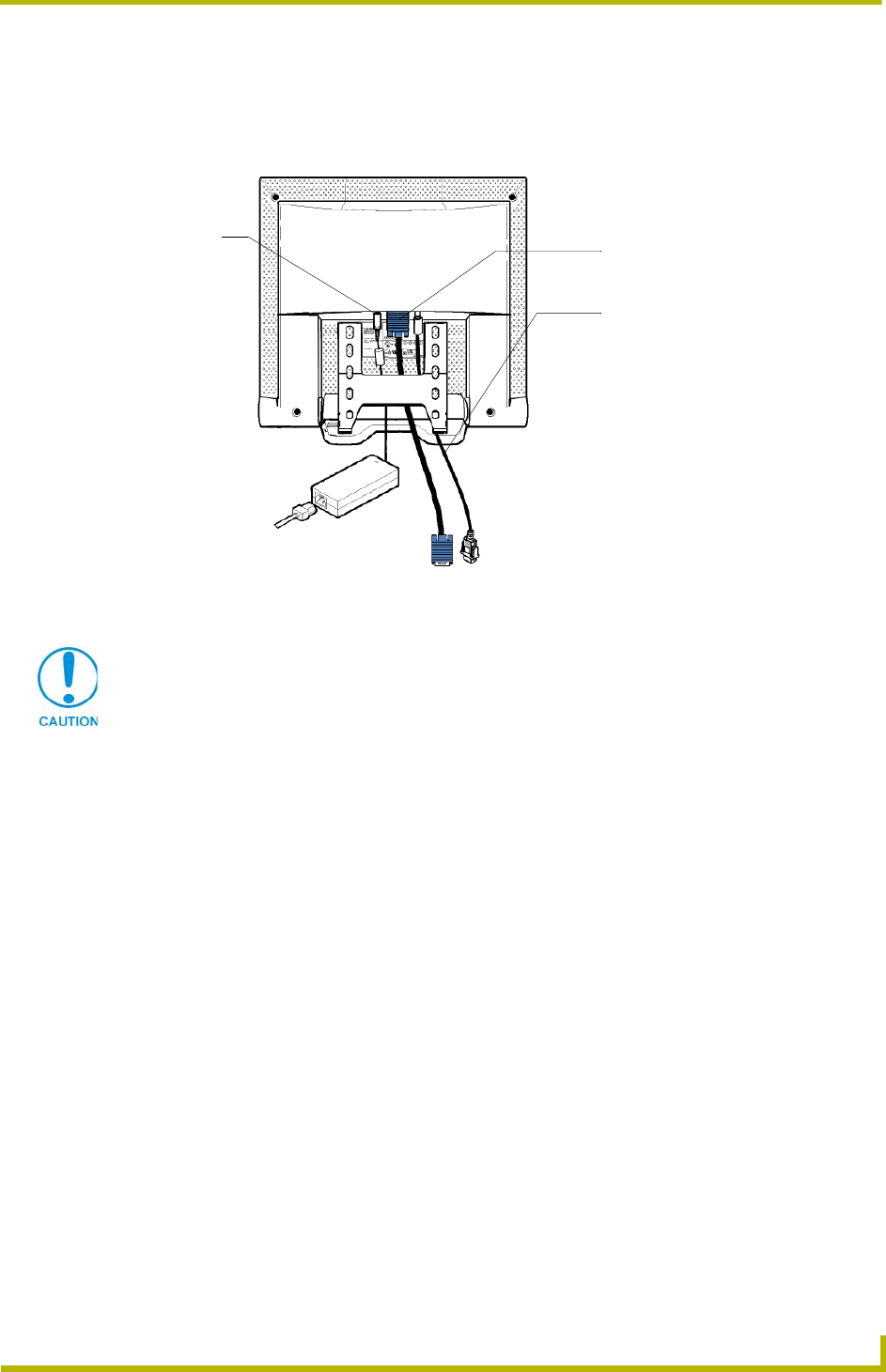

FIG. 11 Attaching the cables to the rear of the VTM-D15/A
VGA Input cable - connects from panel
to Monitor Out port on TPI/3
Touch Screen cable - connects
from panel to Mouse Port on TPI/3
12 VDC connector - routes
power from the power cord and
adapter
Power Adapter
12 VDC
input
Do not plug in the power cord to the Power Adapter at this time. Power is supplied
after the entire system is wired together. Refer to the Connecting the MultiMedia
Components section on page 20 for powering procedures.
