VTM-D15/A 15" MultiMedia Touch Panel Systems
VTM-D15/A and VTM-D15/AB Specifications
The Surface Mount MultiMedia Panel (VTM-D15/AB) differs from the Table Top MultiMedia
Panel (VTM-D15/A) only in the use of a VTM-WMB Wall Mount bracket that comes with the
Surface Mount unit. The following table lists specifications and describes the front and rear panel
components of the 15" MultiMedia Touch Panels.

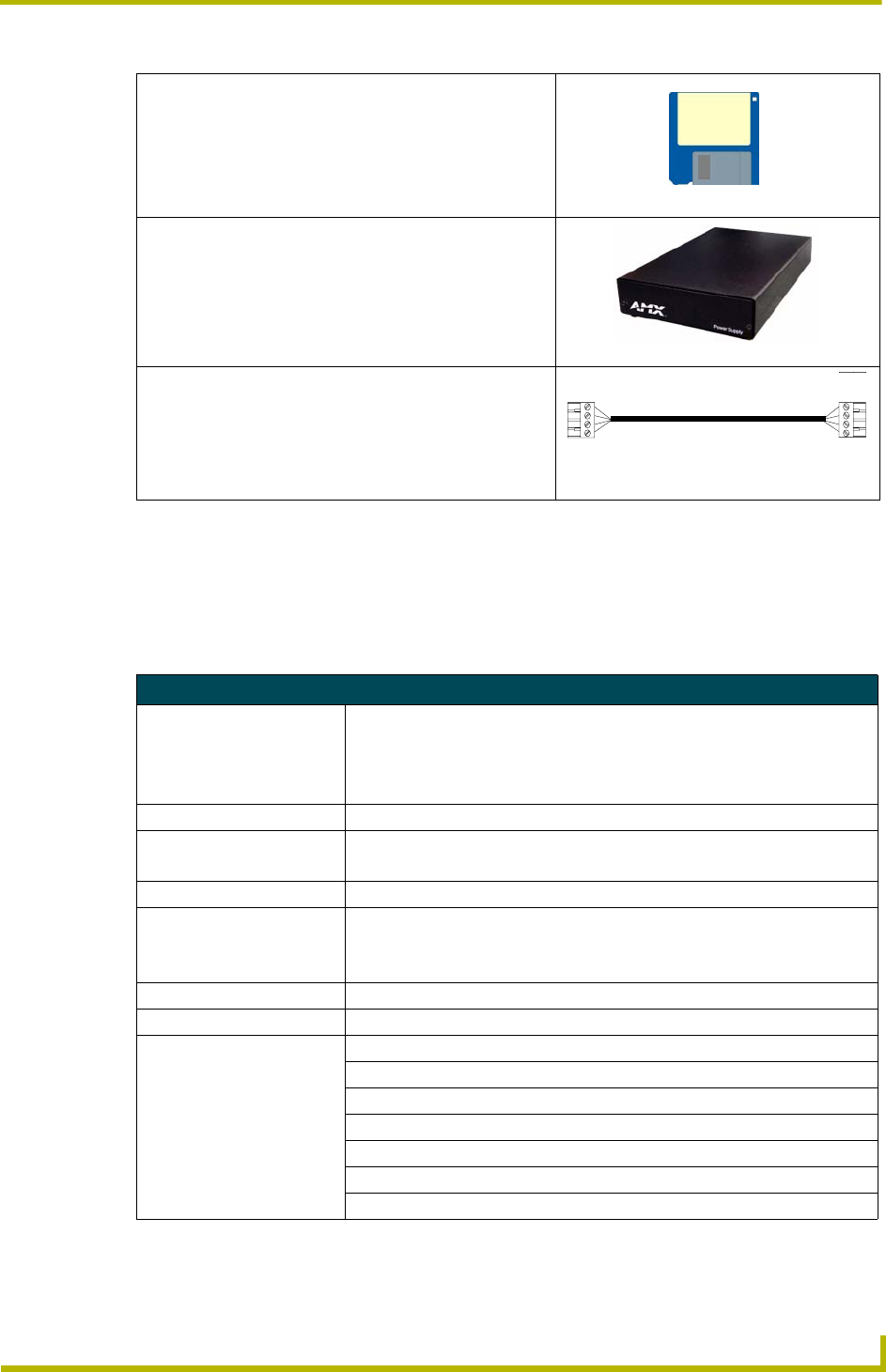

Floppy Disk
Provides the computer monitor drivers.
PSN6.5 Power Supply (optional)
The PSN6.5 NetLinx Power Supply distributes switched-mode
12 VDC power @ 6.5 A to up to three AMX devices.
The PSN6.5 supplies power to the AXB-TPI/3 Touch Panel
Interface 3.
Central Controller to AXlink Connection Cable
(optional)
This 4-pin to 4-pin cable connects the Central Controller to
the AXB-TPI/3 Touch Panel Interface.
Specifications
Dimensions (HWD):
TableTop Panel
Surface Mount Panel
VTM-WMB Bracket
• 14.25" x 15.20" x 6.65" (36.20 cm x 38.60 cm x 16.90 cm)
• 14.75" x 15.20" x 2.87" (37.47 cm x 38.60 cm x 7.30 cm)
• 5.44" x 5.17" x 0.55" (13.82 cm x 13.13 cm x 1.40 cm)
Screen Area Maximum to 1024 x 768 @ 75Hz
Power Consumption • AC: 90 ~ 265 V, 50 ~ 60 Hz
• < 30 W (On), < 8 W (stand-by), and < 5 W (Off)
Memory EPROM Chip
Ratings • Safety - UL, CUL, EPA, CB, TUV/BUART, Nordic
• EMI - FCC-B, CE
• VESA - DCC1/2B, DPMS
Enclosure Metal plate with gray matte finish
On-Screen Properties:
Screens Size 15 inch (38.10 cm) diagonal
Pixel Format 1024 x 768 vertical strip
Pixel Pitch 0.297 mm x 0.297 mm
Brightness 250 cd/m2
Contrast Ratio 300:1
Viewing Angle 160°/160° (minimum)
Color Depth 18-bit
4-pin captive-wire 4-pin captive-wire
