AXIS 540/640 User’s Manual Section 2: Product Overview
15
AXIS 540+/542+ Physical Description

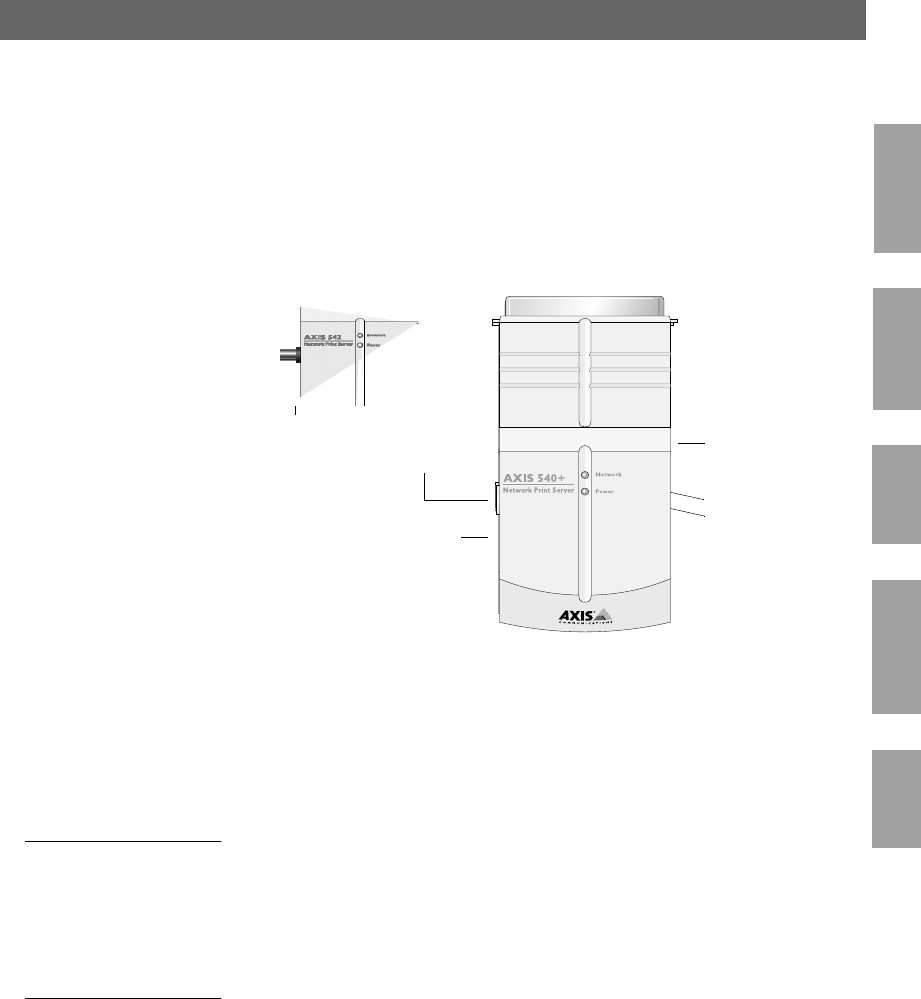

Plan view of the AXIS 540+/542+
Network Connectors The AXIS 540+ is designed for 10 Mbps Ethernet networks and
connect to the network via a twisted pair (10baseT) cable.
The AXIS 542+ is designed for 10 Mbps Ethernet networks and
connect to the network via a thin wire (10base2) cable.
Printer Port The AXIS 540+/542+ print server is provided with a single high-speed
IEEE 1284 compatible parallel port, that connects directly, without
the need of cabling, to any standard printer.
LPT1 Printer
Connector
External Power
Ethernet
10baseT
Connector
Network Indicator
Power Indicator
Test Button
Supply Connector
Ethernet
10base2
Connector
or
