(3) Remove the Actuator spring rear from the Hook part.
(4) Turn the Registration actuator rear.
(5) Slide the Registration actuator rear to remove the Registration actuator rear from the
Rear actuator holder ASSY.

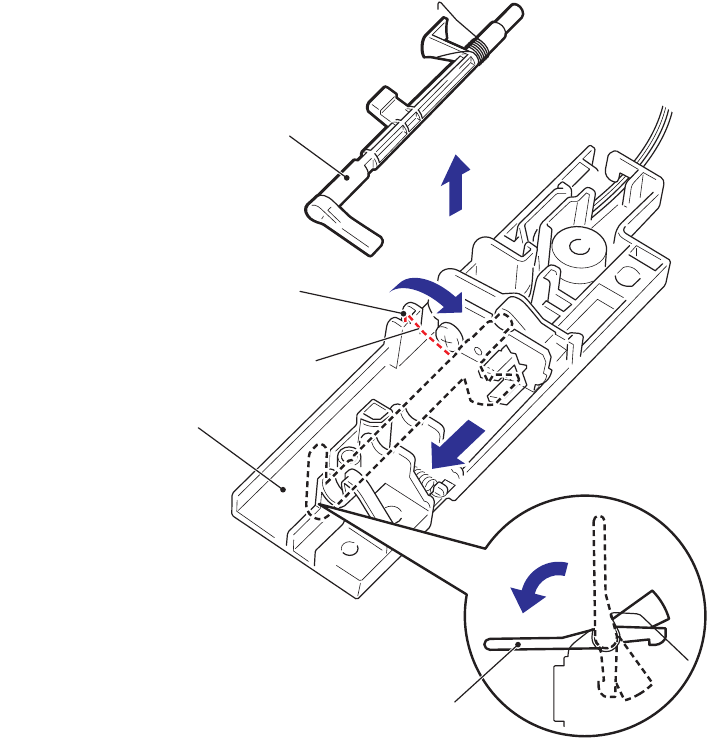

Fig. 3-53
5b
5a
4
5a
Rear actuator holder ASSY
Actuator spring rear
Registration actuator rear
Registration actuator rear
Hook part
