Ciprico Rimfire 3880 Network Card User Manual



User’s Guide 21020285 D
Chapter 3 Hardware Installation
Step 2: Jumpers and Termination Page 3 - 5
Step 2:
Jumpers and
Termination
The RF3880 board has four separate jumper blocks, shown in the figure below.
You will need to consider each of the jumper blocks to determine whether your
application requires changes from the default settings.
Specific locations of the blocks are shown below:

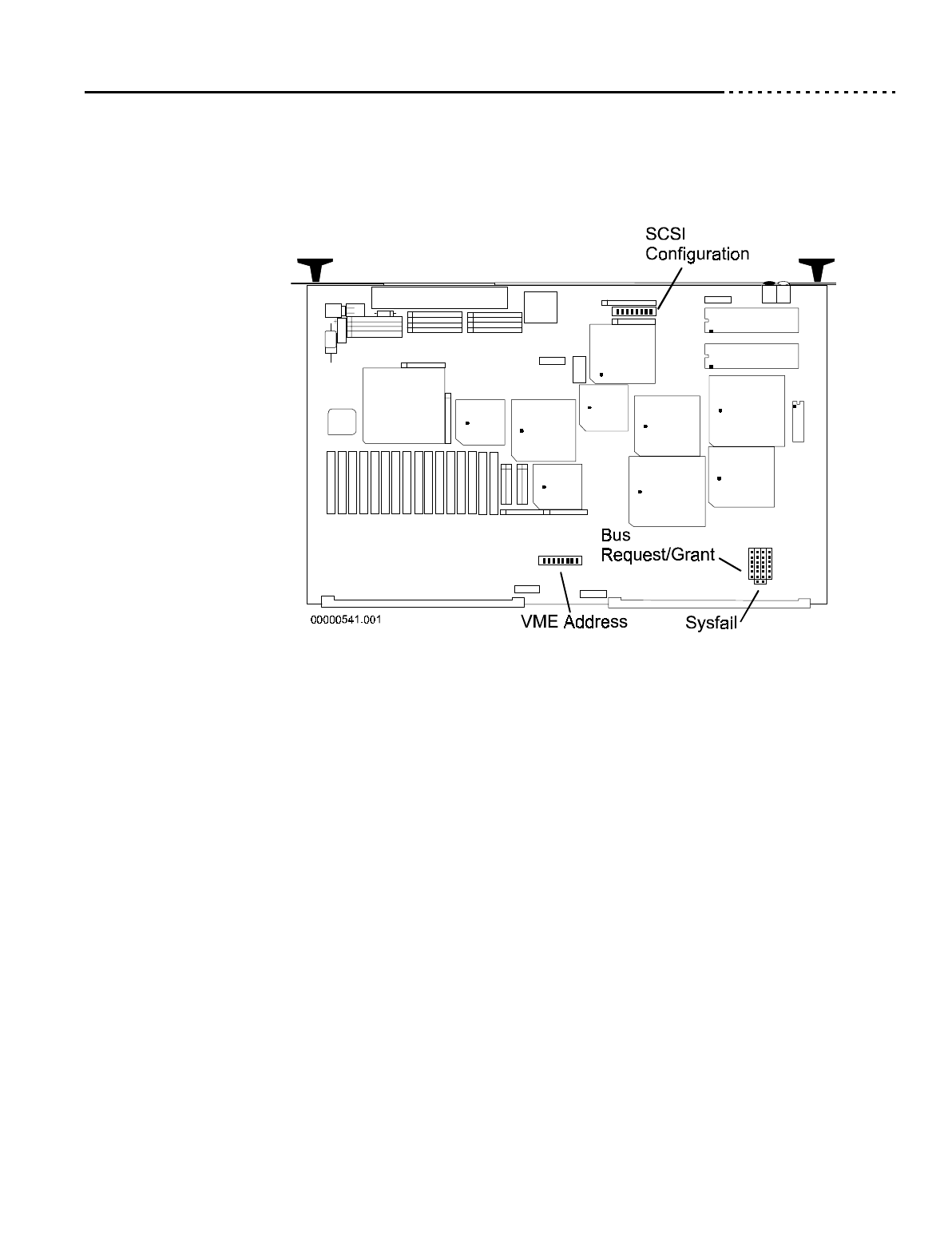

Figure 3 Locations of Rimfire 3880 Jumpers
Each of the jumper blocks shown above will be discussed in the following
pages.
