25
The Hearing Impaired output signal
is available on the screw terminal
connector on the rear of the DCM.
The output signal is similar to
levels that are output from a
standard CD player.

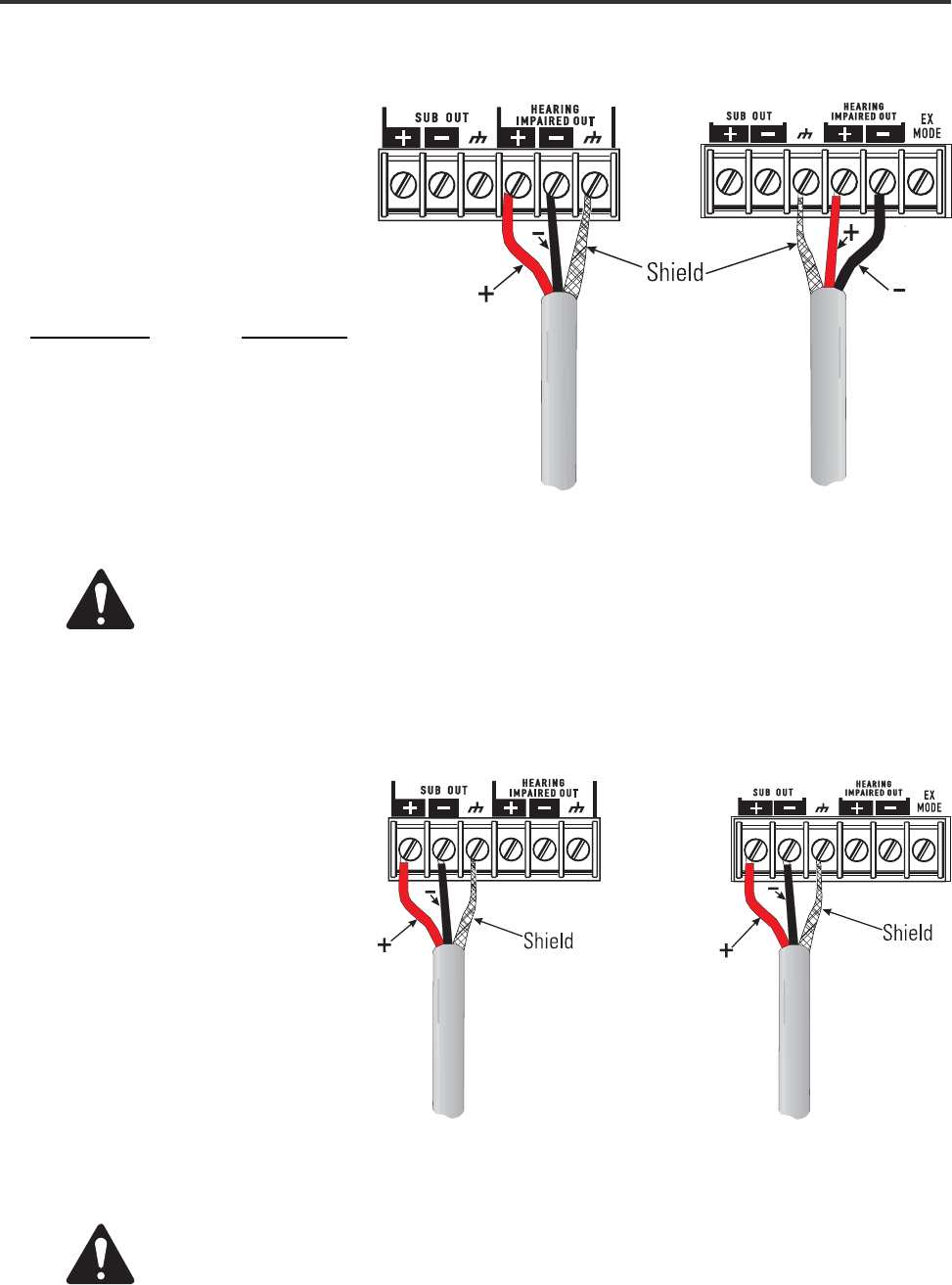

HEARING IMPAIRED CONNECTION
INSTALLATION- Connections: Hearing Impaired, Powered Subwoofer
Screw terminal connections make it
possible to send a balanced signal
to a powered subwoofer. This
signal is balanced and the circuitry
is designed for long cable runs from
the projection booth to the
theater screen. The high-pass
filtering and level adjustments are
done by the DCM unit.
NOTE: There will be no fault
analysis or output audio monitoring
available for the sub channel signal
if this connection
is used.
POWERED SUBWOOFER CONNECTION
DCM-1 Terminals DCM-2 and -3 Terminals
DCM-1 Terminals DCM-2 and -3 Terminals
Output Level Impedance
-11.8 dBu 50 ohms
(200 mVrms) (±5%)
Connect other end of cable according to
equipment manufacturer’s instructions.
Connect other end of cable according to
equipment manufacturer’s instructions.
Use balanced audio connections and high-quality, shielded, balanced audio
cable for interconnecting the DCM and Hearing Impaired equipment. Balanced
connections are less prone to noise pick-up than unbalanced connections.
Use balanced audio connections and high-quality, shielded, balanced audio
cable for interconnecting the DCM and Powered Subwoofer equipment. Balanced
connections are less prone to noise pick-up than unbalanced connections.
