3-3SW AV Series Switchers • Operation
Audio switcher — Switches audio on captive screw or RCA connectors. May
or may not include video switching.
Audio-only switcher — Switches audio only on captive screw or RCA
connectors. No video switching.
Video AND audio switcher — Switches both composite video or S-video
AND audio on captive screw or RCA connectors.

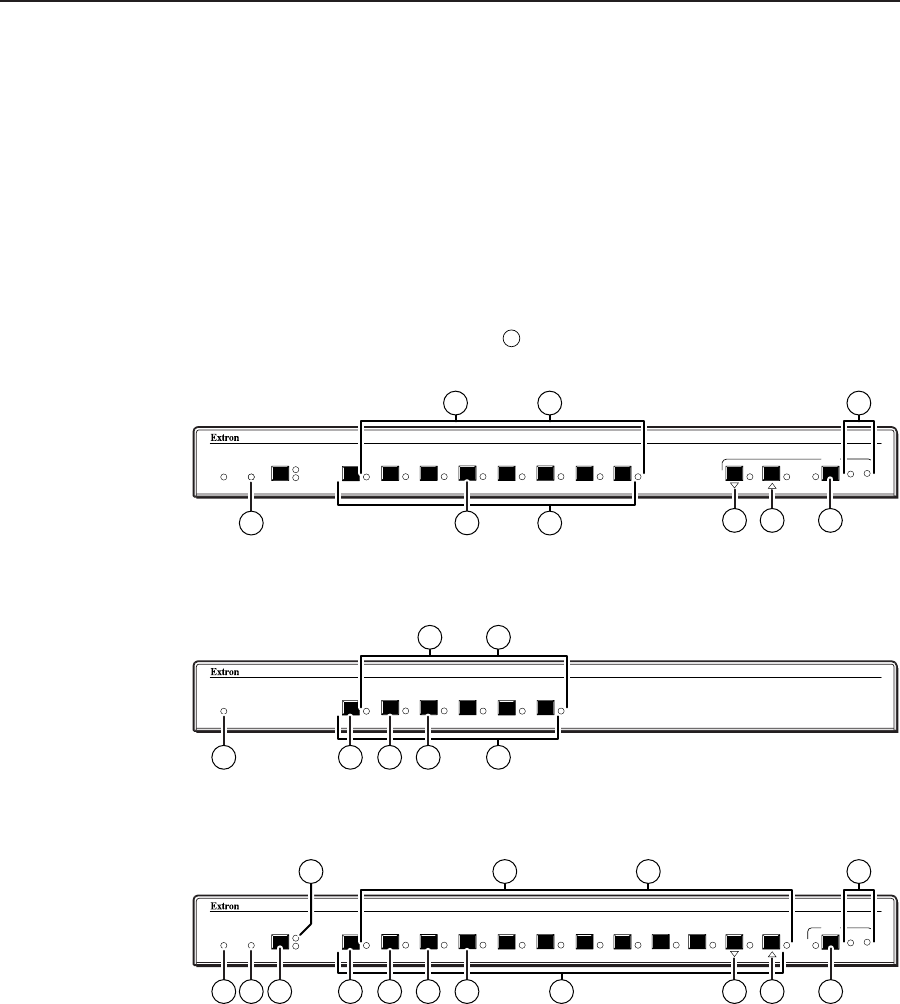

Figure 3-1 shows the front panel of an 8-input audio-only switcher. Figure 3-2
shows the front panel of a 6-input video-only switcher. Figure 3-3 shows the front
panel of a 12-input video and audio switcher. These three examples show all of the
combinations that you may encounter with your particular switcher. Many of the
input buttons and LEDs on figure 3-1 through figure 3-3 have dual functions. Dual
function controls have two callouts (
n
numbers); each callout is related to its
function in the following pages.
SW SERIES
VIDEO / AUDIO SWITCHER
AUDIO
CONF/SAVE
EXECUTIVE
MODE
8
7
6
5
4
32
1
-dB
+dB
AUTO SWITCH
ACTIVE
VIDEO
AUDIO
I/O
15
4 9 8
3
6 7 5
14
Figure 3-1 — SW 8A front panel
SW SERIES
VIDEO / AUDIO SWITCHER
32
1
AUTO SWITCH
ACTIVE
6
5
4
AUTO SWITCH
13
4 9
3
10 1211
Figure 3-2 — SW 6SV front panel
SW SERIES
VIDEO / AUDIO SWITCHER
AUDIO
CONF/SAVE
EXECUTIVE
MODE
12
11
10
9
8
7
6
5
4
32
1
VIDEO
AUDIO
I/O
-dB
+dB
AUTO SWITCH
ACTIVE
4 9 8
3
6 71 5
2
13 15 10 12 1411
Figure 3-3 — SW 12VA RCA front panel
