1.2.2 Configuration
Figure 1.3 shows the drive configuration.
The drive consists of mechanical sections, a fixed optics section, actuator, and a
control circuit section. The mechanical sections include the spindle motor,
actuator section, bias magnet, and the cartridge folder vertical motion mechanism.
The fixed optics section consists of the optical components, position detector, and
LD controller.
The control circuit sections include the drive control circuit section and SCSI
controller section.

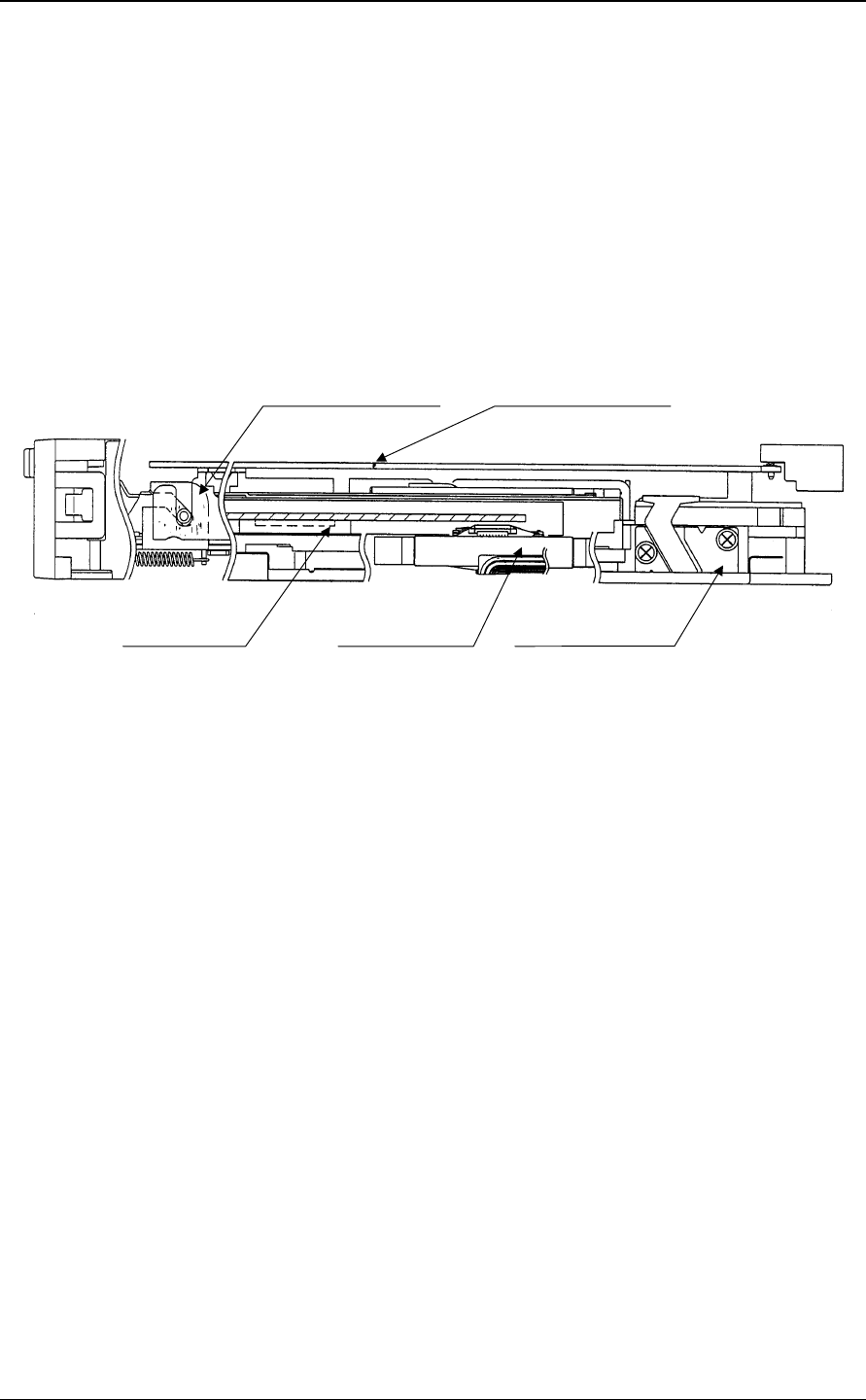

Figure 1.3 Optical disk drive configuration
Fixed optics sectionActuator section
Control circuit section
Spindle motor
Optical disk cartridge
