Host Interface
4-2 C156-E224-01EN
Symbol mm Remarks
C1 2.540 -
C2 60.960 -
C3 2.540 -
C4 3.302 -
C5 32.385 -
C6 68.072 -
C7 6.096 -
C8 7.620 Maximum value
Notes:
1. The tolerance is ± 0.127 mm unless otherwise specified.
2. A connector cover and strain relief are not shown in this figure.

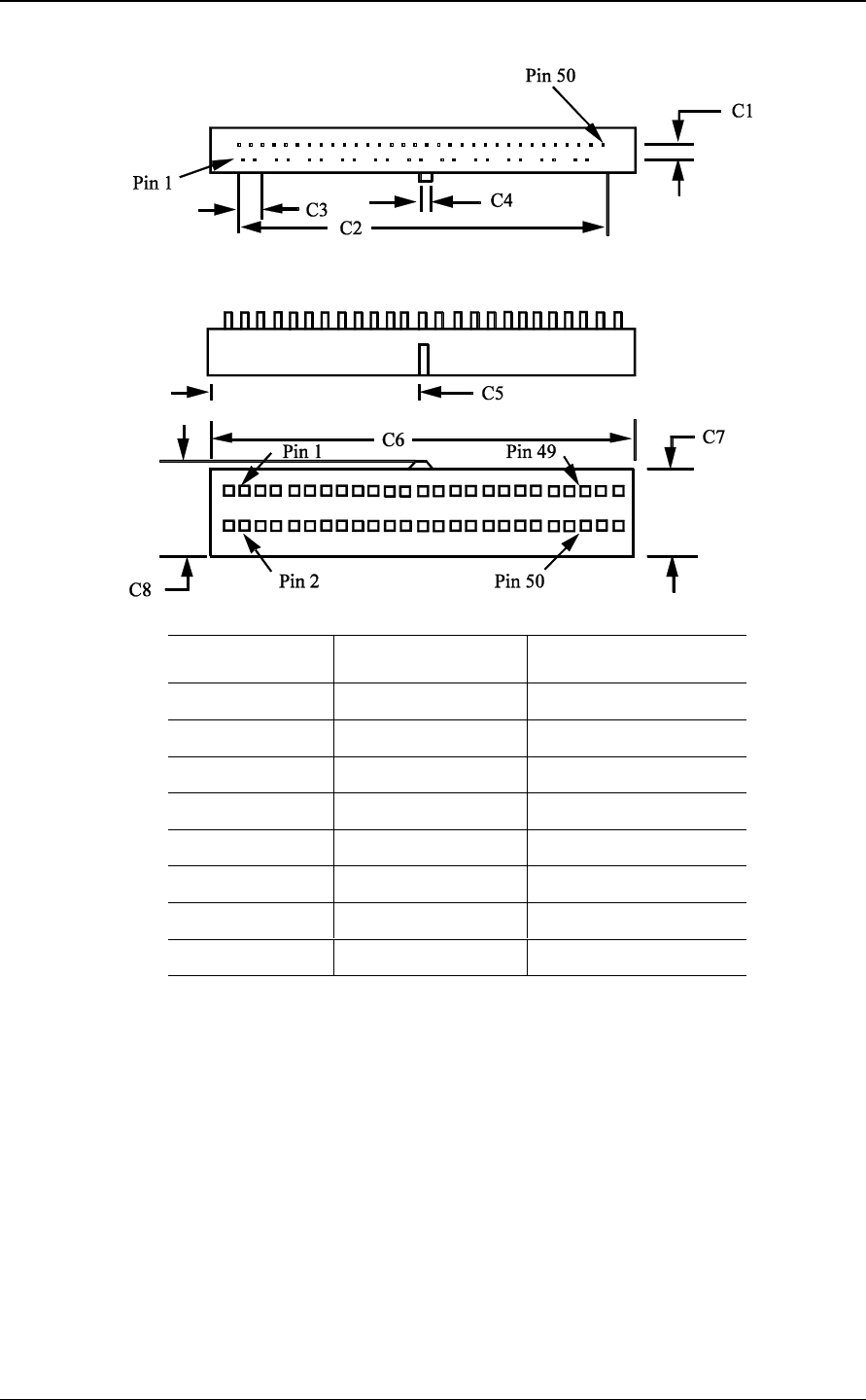

Figure 4.2 SCSI interface connector (cable side)
