Installation Requirements
3-12 C156-E224-01EN
3.4 Cable Connections
3.4.1 Drive connectors

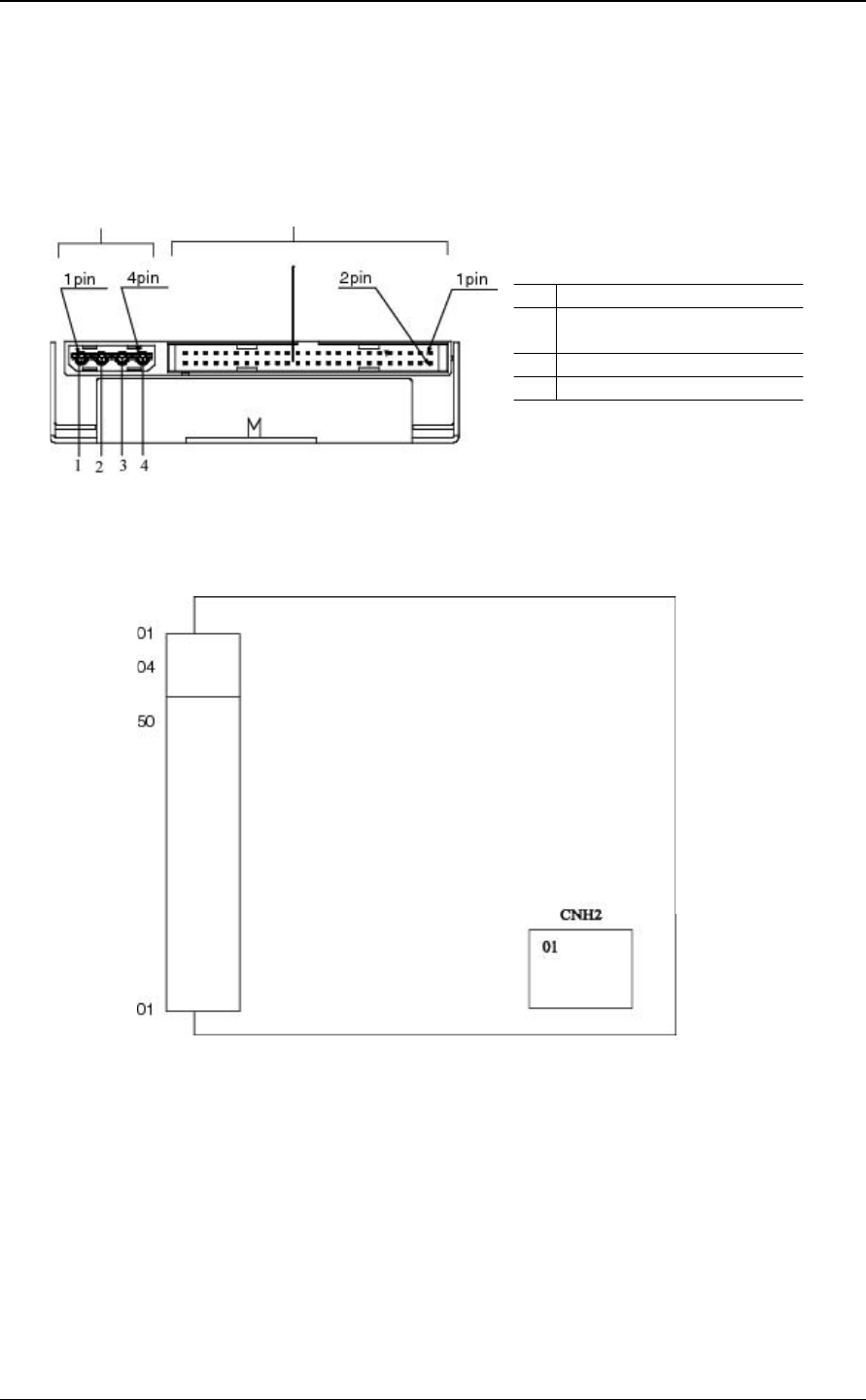

Figure 3.9 shows the connector and terminal locations.
1 + 12VDC or not connected
2 +12VDC RETURN (GND)
or not connected
3 + 5VDC RETURN (GND)
4 + 5VDC
Figure 3.9 Connector and terminal locations
Front
(Component side)
SCSI
connector
Power
connector
Figure 3.10 Location of setting terminal
