3.5 Settings
3.5.1 Default jumper settings
Figure 3.14 shows the types of switches and their settings when the drive was
shipped.

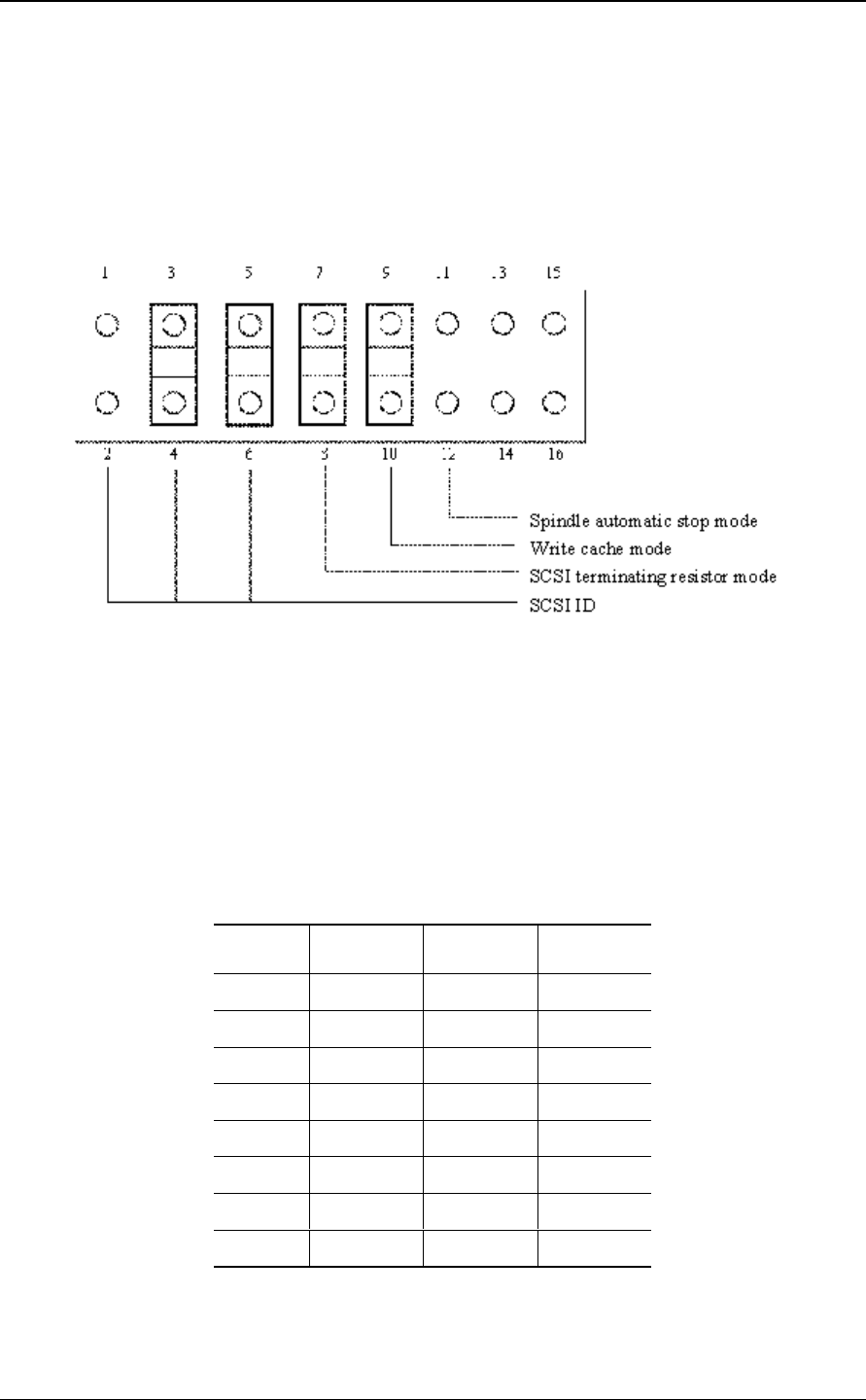

Figure 3.14 Setting terminal (CNH2)
3.5.2 Setting terminal
(1) SCSI ID
Table 3.5 shows the SCSI ID settings of the drive.
Table 3.5 SCSI ID setting (CNH2)
SCSI ID Pin 5-6 Pin 3-4 Pin 1-2
0 Open Open Open
1 Open Open Short
2 Open Short Open
3 Open Short Short
4 Short Open Open
5 Short Open Short
6 *1 Short Short Open
7 Short Short Short
*1 Factory setting
