4.7 Timing
C156-E227-01EN 4-91
4.7.7 Ultra DMA data in transfer (host end timing)
DMARQ
DMACK-
STOP
HDMARDY-
DSTROBE
DD(15:0)
DA(2:0)
CS0-, CS1-
tLI
tMLI
tZAH
tAZ
tRP
tRFS
tLI
tMLI
tACK
tACK
tIORDYZ
tDVS
tDVH
tACK
tACK

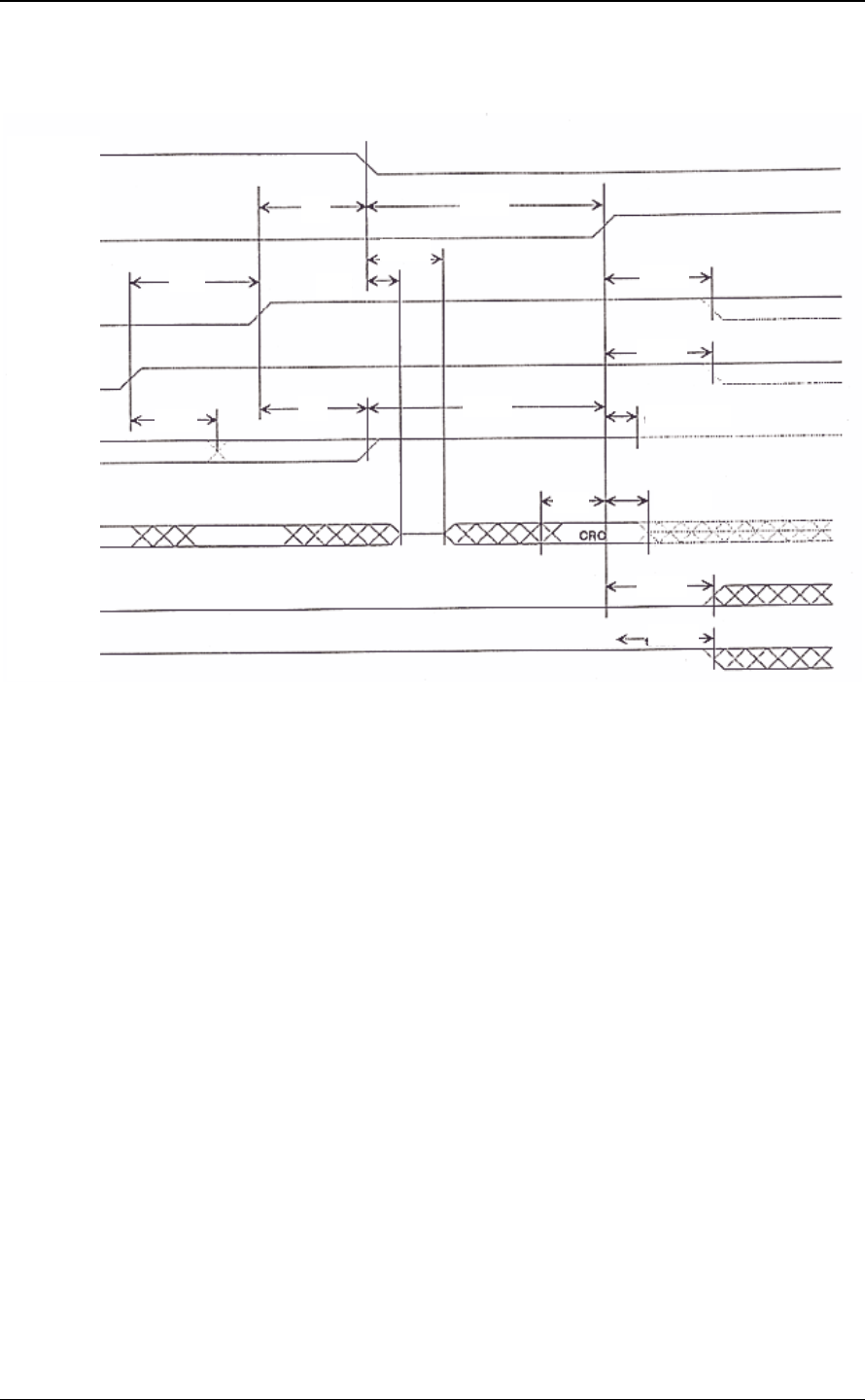

Figure 4.8 Ultra DMA data in transfer (host end timing)
