3.5 Jumper Settings
C156-E227-01EN 3-17
3.5.2 Mode settings
(1) Master device mode setting

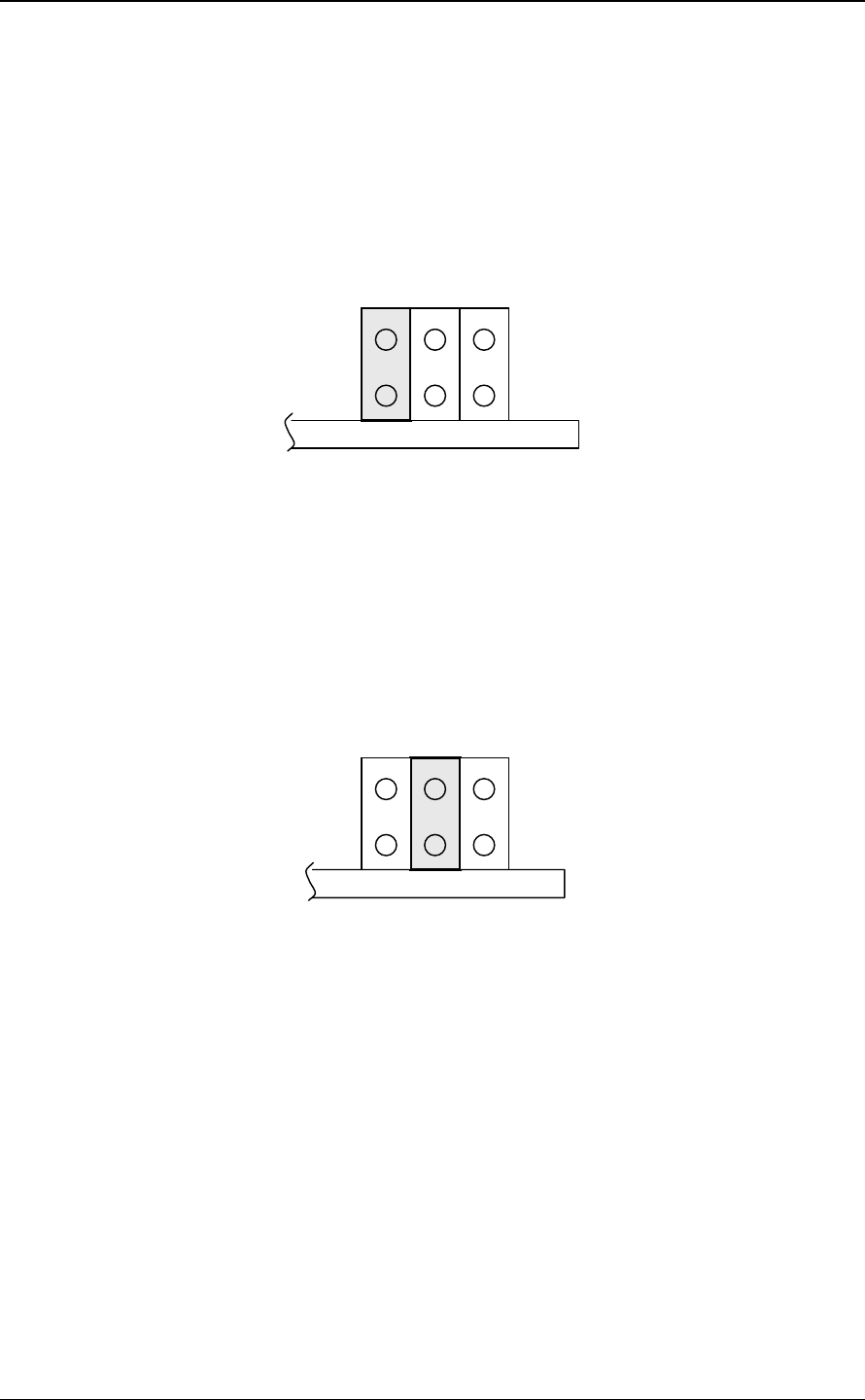

Figure 3.12 shows the setting that enables a master device (device 0) to be
detected.
531
CNH5
642
Figure 3.12 Master device setting
(2) Slave device mode setting
Figure 3.13 shows the setting that enables a slave device (device 1) to be detected.
531
CNH5
642
Figure 3.13 Slave device setting
