Replacing the LCD assembly

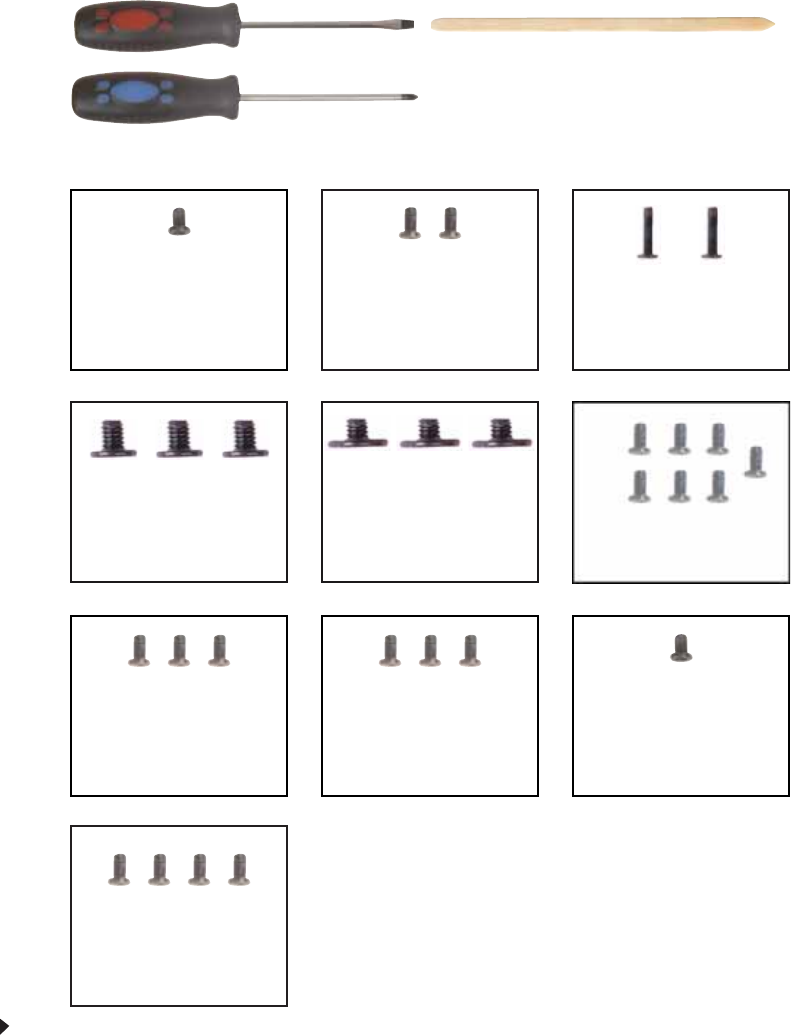

Tools you need to complete this task:
v
Screws removed during this task:
To replace the LCD assembly:
1 Complete the steps in “Preparing the convertible notebook” on page 5.
2 Remove the memory bay cover by following the steps in “Adding or replacing memory
modules” on page 6.
3 Disconnect the wireless antenna wires by following the steps in “Replacing the IEEE 802.11
wireless card” on page 10.
4 Remove the DVD drive by following the steps in “Replacing the DVD drive” on page 14.
Flat-blade driver Scribe or non-marring tool- OR -
Phillips #0 screwdriver
7 black 2.5*4.5 (Palm
rest-bottom)
1 black 2.5*3.0 (DVD
drive)
3 black 2.5*6.0 (Palm
rest-top)
3 black 2.5*4.5 (System
board)
1 black 2.0*3.0 (LCD
grounding screw)
4 black 2.5*6.0 (LCD
panel hinge)
2 black 2.0*6.0 (Palm
rest-bottom)
3 black 2.5*3.0 (Palm
rest-DVD drive bay)
3 black 2.5*2.2 (Palm
rest-hard drive bay)
2 black 2.5*3.0 (hard
drive)
