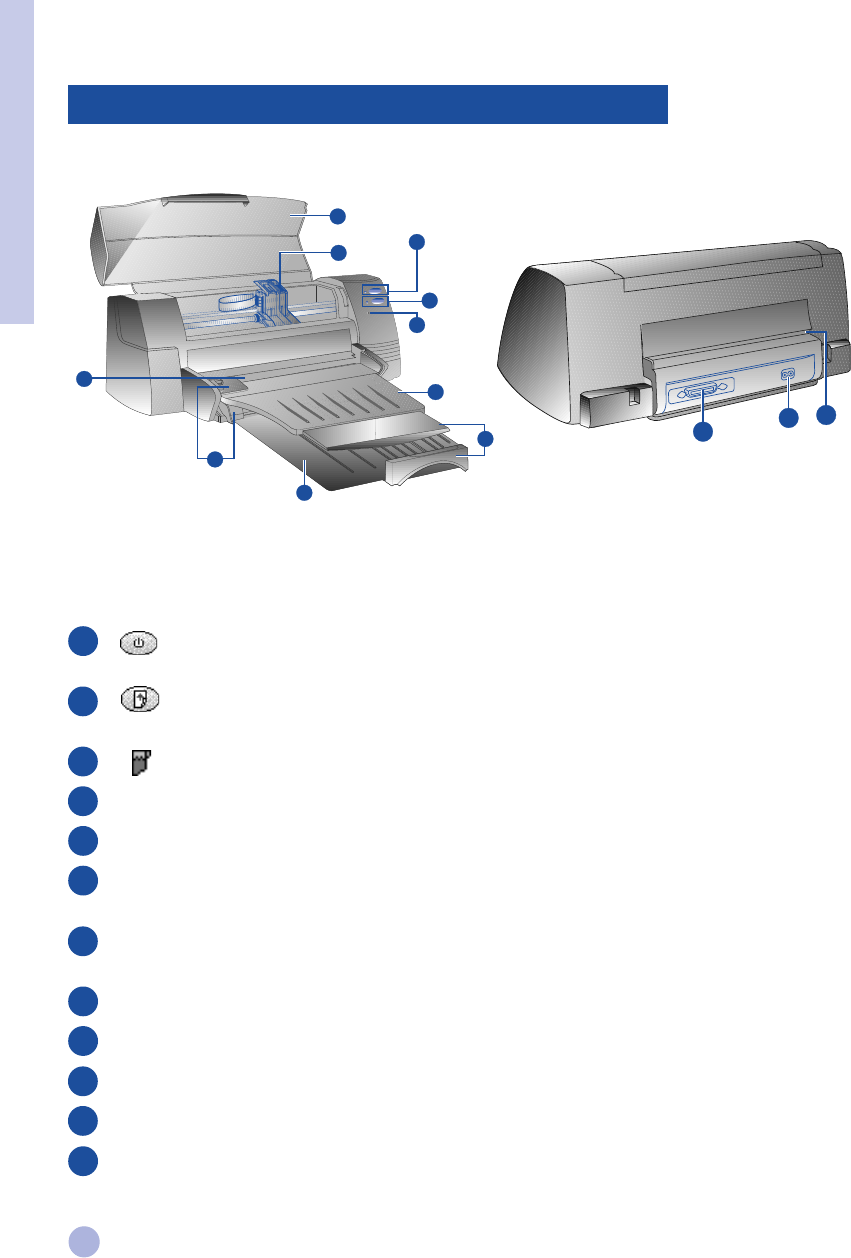

Understanding the Printer's Parts and Functions
Printer Parts Functions
Power Button and Indicator Turns the printer on and off. See the following section on
"Printer Lights".
Resume Button and Indicator Indicates that user intervention is required.
See the following section on "Printer Lights".
Cartridge Indicator Indicates print cartridges need user attention.
Paper Length/Width Adjuster Holds paper in place.
Alternative Top Media Feed Holds up to 10 sheets of paper.
Main Bottom Media Tray Holds the stack of commonly used paper.
Holds up to 150 sheets of paper.
Output Tray Receives paper as it comes out of the printer.
Holds up to 50 sheets of printed paper.
Print Cartridge Latches Secure the print cartridges.
Printer Cover Keeps dust particles from the printer parts.
Rear Media Feed For feeding thick paper requiring straight paper path.
Power Socket For connecting to a power source.
Parallel Port For sending and receiving data to and from the computer.
Section 1 - Getting Started
