Page 36 of 46 Install ISDN BRI hardware
553-3901-200 Standard 7.00 January 2002

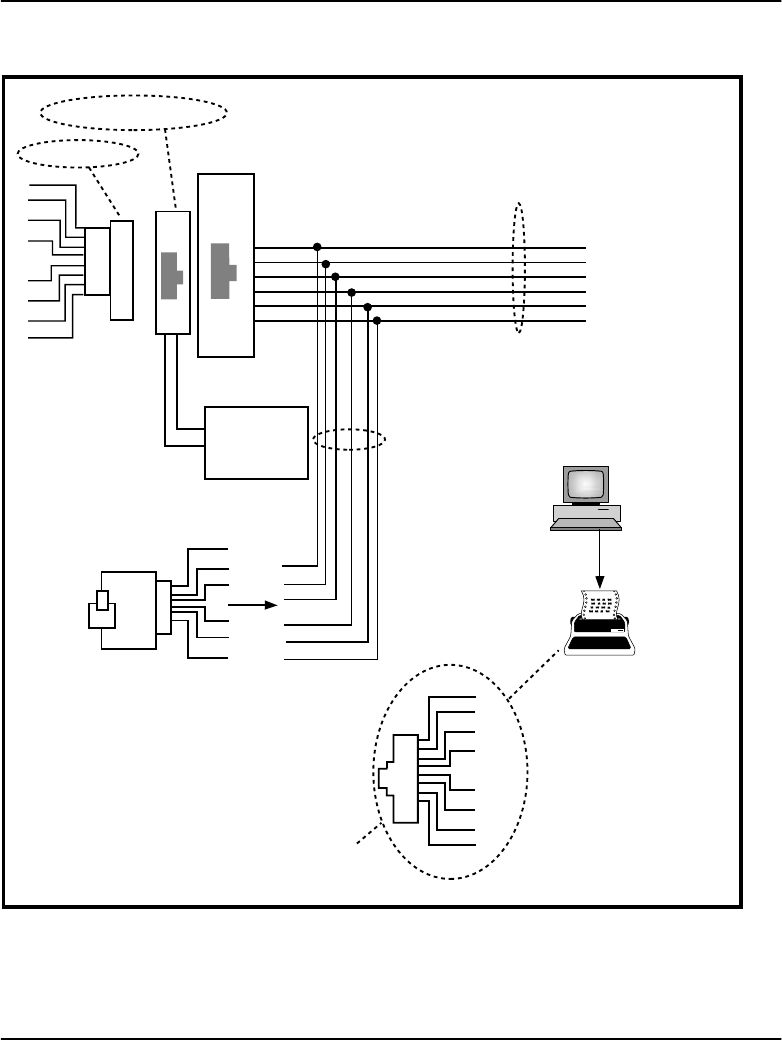

Figure 9
Connect the ISDN BRI terminal to the S/T interface
1
2
3
4
5
6
7
8
1
2
3
4
5
6
7
8
3
4
5
6
7
8
Optional Power Adapter
RJ-45 type
wall outlet
RJ-45 type plug
S/T interface
Optional
external power
source (PS 52)
3 Rx+
4 Tx+
5 Tx-
6 Rx-
7 P-
8 P+
Voice Data
terminal
1
2
3 Tx+
4 Rx+
5 Rx-
6 Tx-
7 P-
8 P+
S/T interface connector
on the ISDN/BRI terminal
Printer
DSL wiring
WHT/ORG
BLU/WHT
WHT/BLU
ORG/WHT
GRN/WHT
WHT/GRN
Modular cable
(maximum
length 10 m)
553-7700
R+
T+
T-
R-
P-
P+
