Advanced Configuration Options 52
Model 2160 Series User Manual 4 • Web configuration
• Strictly Priority (SP): The SP Queue Type uses queues that are based on priority only. SP transmits the
highest priority queue first, then the next highest priority queue, and so on. However, if there is always
some content in the highest priority queue, then the other packets in the rest of queues will not be sent until
the highest priority queue is empty. The SP algorithm is preferred when the received packets contain some
high priority data, such as voice and video.

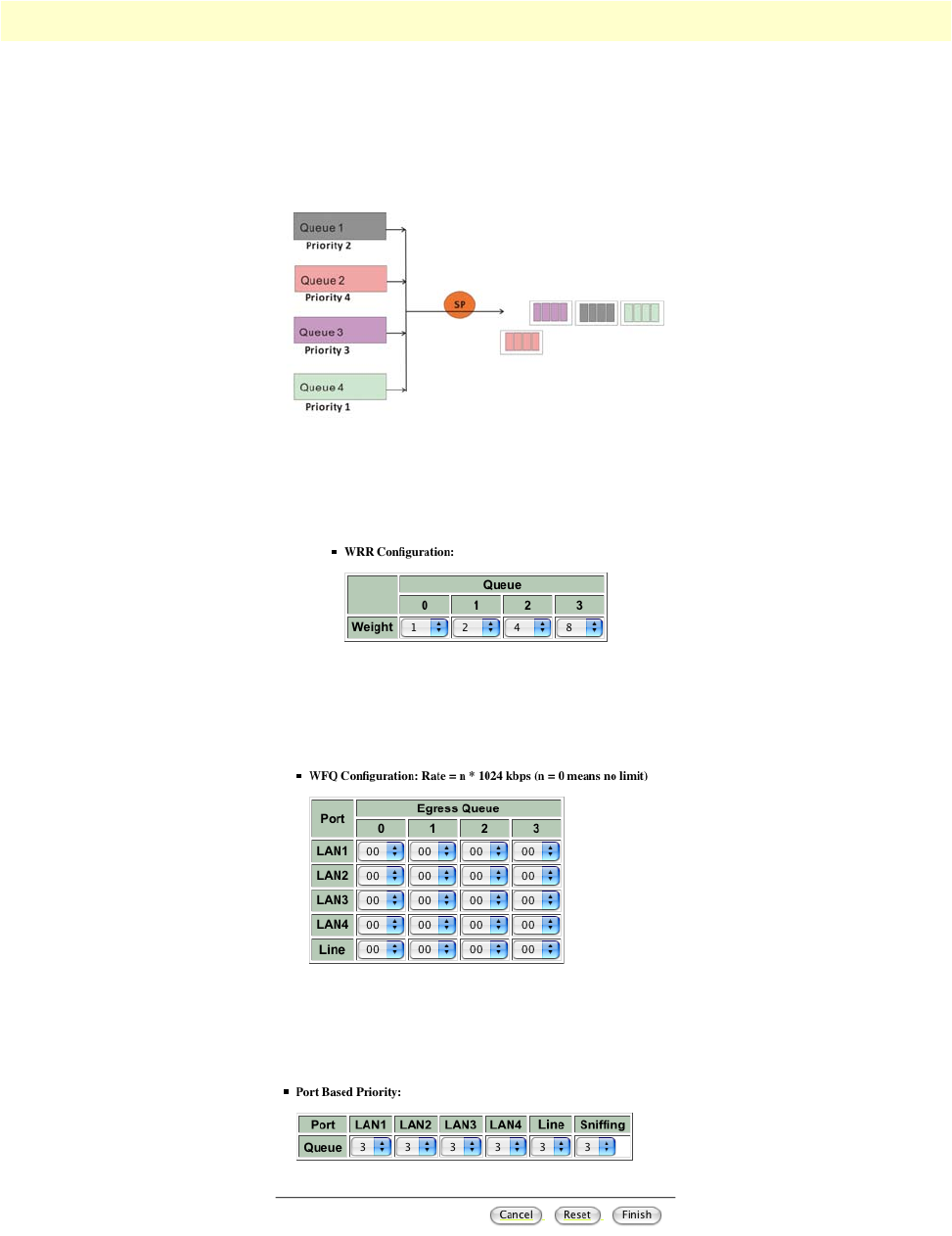

Figure 25. SP Example
WRR Configuration. If you selected Type 1 in the Scheduling Configuration section, then provide infor-
mation for the WRR table. Assign a weight value (from 1 to 15) to determine the priority for each queue.
Figure 26. QoS - Port Based Priority - WRR Configuration
WFQ Configuration. If you selected Type 2 or Type 3 in the Scheduling Configuration section, then pro-
vide information for the WFQ table. Assign the bandwidth for each queue in each port.
Figure 27. QoS - Port Based Priority - WFQ Configuration
Port-Based Priority Table. For the last step, assign queues to their corresponding ports: LAN 1-4, DSL and
Sniffing.
Figure 28. QoS - Port Based Priority Table
