7
• Read this manual carefully and keep it in a safe
place for future consultation.
This manual contains important information on how to install
and use this equipment correctly. Before using the equip
-
ment, read the safety prescriptions and instructions carefully.
Keep the manual for future consultation.
• Do not touch internal parts of the units.
The units contain electrical parts carrying high voltages and
operating at high temperatures. Do not remove the cover
from the units, refer to qualified service personnel for all
repair and maintenance requirements.
The warranty will be automatically invalidated if the cover is
removed from the units.

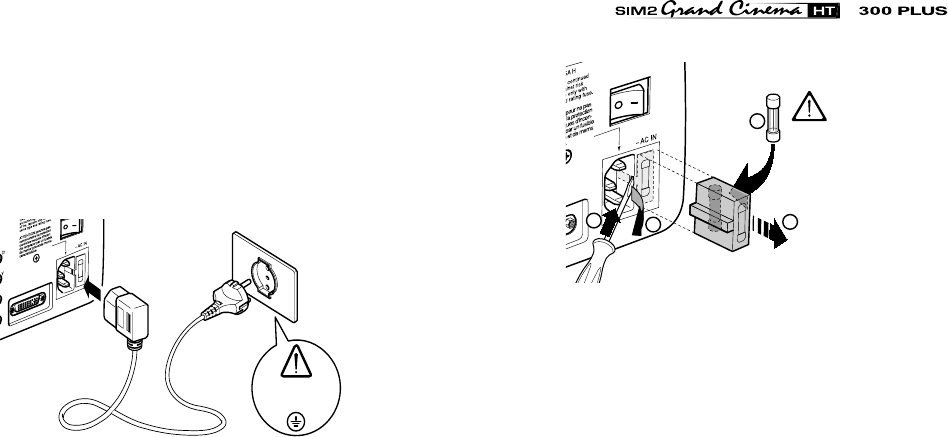

• Power supply disconnect device.
The device for disconnecting the units from the mains power
supply is constituted by the power cable plug. Ensure that
the power cable plugs and the electrical mains socket
outlets are easily accessible during installation operations.
To disconnect the units from the electric power supply, pull
the plug to remove it from the socket outlet. Do not pull the
power cable.
•
Use only the specified type of mains power supply.
Connect the units to a mains electrical supply with rated
voltage of between 120-240 VAC, 50/60 Hz and equipped
with a protective earth connection. If you are unsure of the
type of mains power supply in your home, consult a quali
-
fied electrician. Ensure that the power draw of the units is
commensurate with the rating of the electrical socket outlets
and any extension cables that are used.For the DigiOptic™
Image Processor use exclusively the power supply unit pro
-
vided or an alternative power supply unit expressly approved
by SIM2.
Fig.1
�
�
Fig.2
• Replace the safety fuse
250 V
T 3.15A H
2
3
4
1
Fig.3
• Beware of power supply cables.
Position the power supply cables so that they do not con
-
stitute an obstruction.
Position the power supply cables where they cannot be
reached by children.
Install the units as close as possible to the wall electrical
socket outlet. Do not tread on the power cables, make sure
that they are not tangled or pulled; do not expose the power
cables to heat sources; make sure that the power cables do
not become knotted or kinked. If the power cables become
damaged, stop using the system and request the assistance
of an authorised technician.
• Disconnect the apparatus from the mains power
supply in the event of electrical storms and when
not in use.
To avoid damage that could be caused by lightning striking
in the vicinity of your home, disconnect the units in the event
