16 CHAPTER 1: 3COM ETHERNET POWER SOURCE OVERVIEW

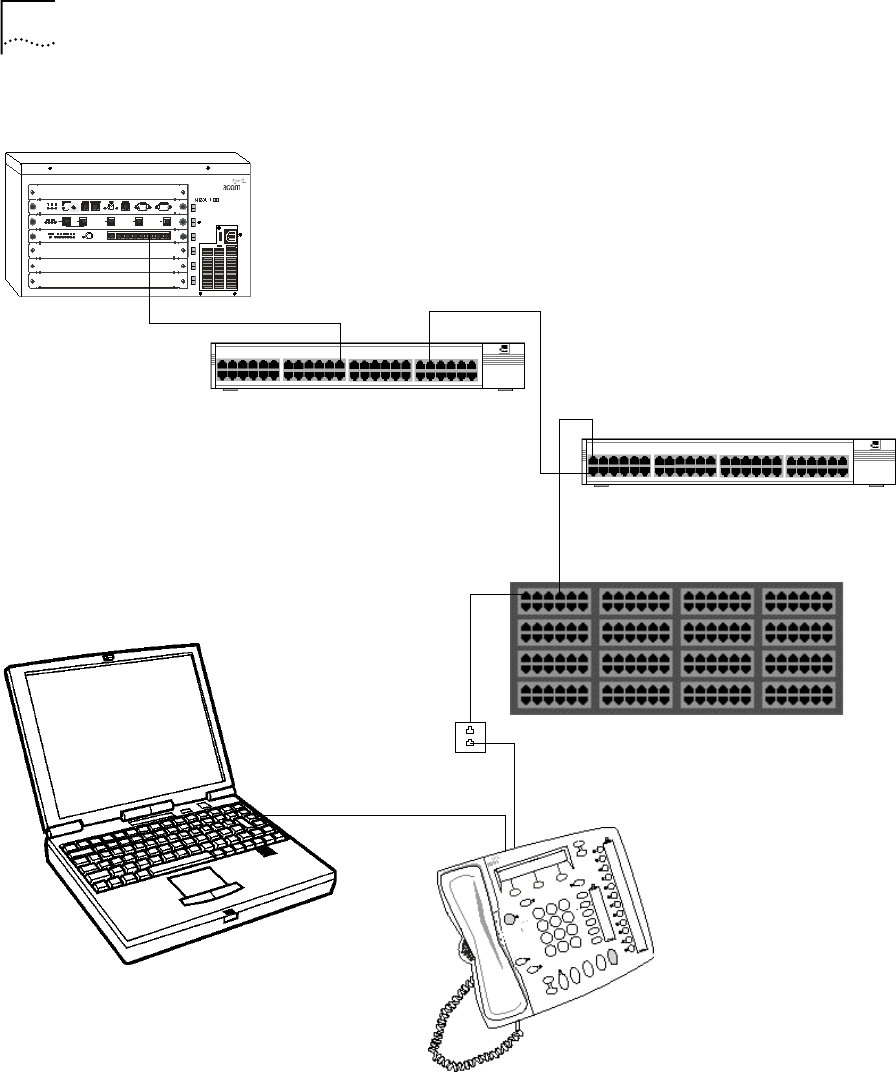

Figure 4 Sample EPS Topology with the NBX 100 Communications System
NBX 100
Switch or Hub
3Com Ethernet
Power Source
Wiring Closet
Patch Panel
Premises
Cabling
Wall
Jack
